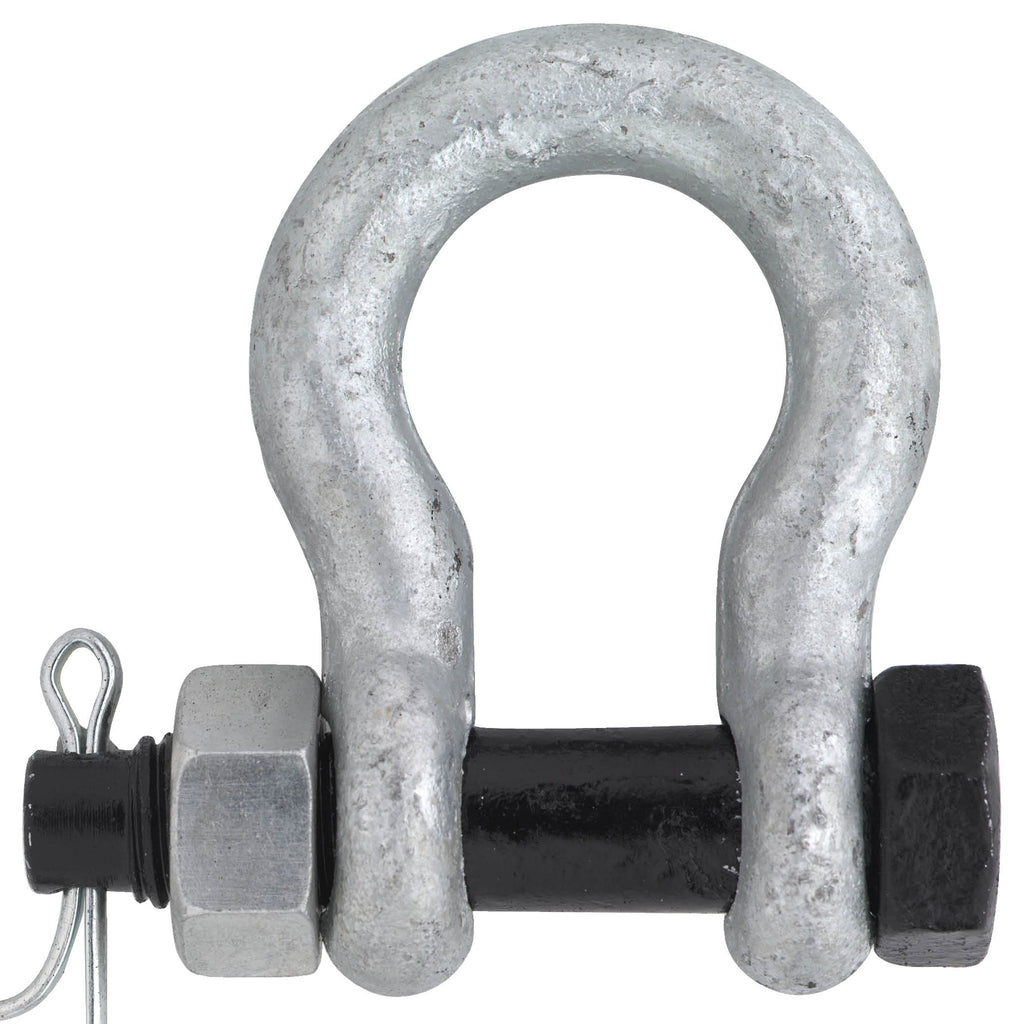

Fed Spec Bow Shackle With Safety Pin

Fed Spec Bow Shackle With Safety Pin
Price on Request

Black Pin US Fed Spec RR-C-271 shackles are high quality items that are hard stamped with a batch number to ensure complete traceability back to the product manufacturer.

The range includes Bow and D-Shackles with a choice of either screw or safety pins.


User Manual

Black Pin US Fed Spec Bow Shackle With Safety Pin



Type IV A Class 3

With safety pin

S.F. 6:1 (MBL = 6 x WLL)

Hot dip galvanized





Code WLL [tonnes] Body D [mm] Pin d [mm] Jaw a [mm] Inside lth C [mm] Bow radius r [mm] Weight [kg/pc]
BS050E 0.50 6 8 13 28.5 10 0.06
BS075E 0.75 8 10 14 31 10.5 0.10
BS100E 1.00 10 11 17 37 13 0.16
BS150E 1.50 11 13 18 43 14.5 0.20
BS200E 2.00 13 16 21 48 16.5 0.35
BS325E 3.25 16 19 27 60 21.5 0.76
BS475E 4.75 19 22 32 71 25.5 1.23
BS650E 6.50 22 25 37 84 29 1.79
BS850E 8.50 25 28 43 95 34 2.77
BS950E 9.50 28 32 46 108 37 3.75
BS1200E 12.00 32 35 51 119 41 5.31
BS1350E 13.50 35 38 57 132 45 6.97
BS1700E 17.00 38 41 60 146 49 9.43
BS2500E 25.00 45 50 73 178 63.5 15.38
BS3500E 35.00 50 57 83 197 73 23.70
BS5500E 55.00 65 70 105 260 90 40.00
