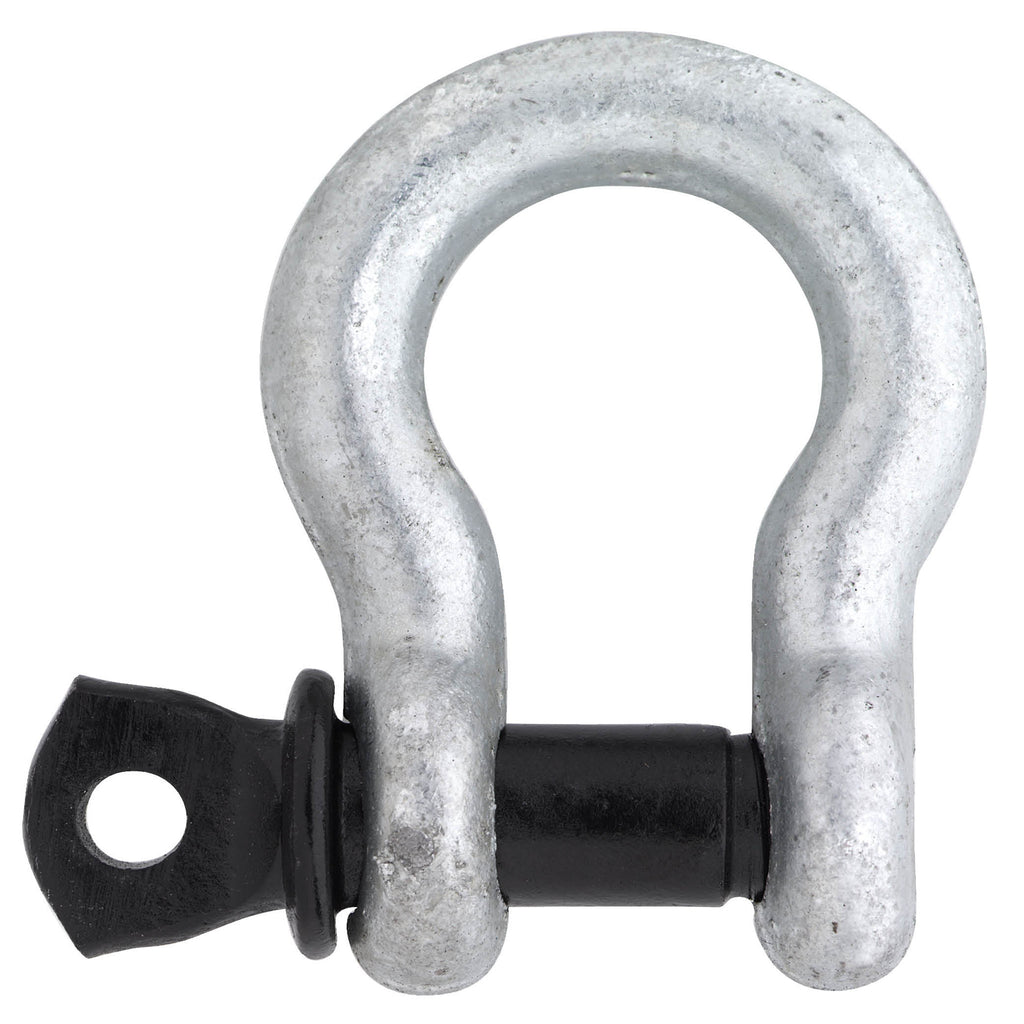

Fed Spec Bow Shackle With Screw Pin

Fed Spec Bow Shackle With Screw Pin
Price on Request

Black Pin US Fed Spec RR-C-271 shackles are high quality items that are hard stamped with a batch number to ensure complete traceability back to the product manufacturer.

The range includes Bow and D-Shackles with a choice of either screw or safety pins.


User Manual

Black Pin US Fed Spec Screw Pin Bow Shackle



Type IV A Class 2

With screw collar pin

S.F. 6:1 (MBL = 6 x WLL)

Hot dip galvanized




Code WLL [tonnes] Body D [mm] Pin d [mm] Jaw a [mm] Inside lth C [mm] Bow radius r [mm] Weight [kg/pc]
BS033A 0.33 5 6 10 22 8 0.02
BS050A 0.50 6 8 13 28.5 10 0.05
BS075A 0.75 8 10 14 31 10.5 0.08
BS100A 1.00 10 11 17 37 13 0.14
BS150A 1.50 11 13 18 43 14.5 0.17
BS200A 2.00 13 16 21 48 16.5 0.28
BS325A 3.25 16 19 27 60 21.5 0.62
BS475A 4.75 19 22 32 71 25.5 1.02
BS650A 6.50 22 25 37 84 29 1.53
BS850A 8.50 25 28 43 95 34 2.41
BS950A 9.50 28 32 46 108 37 3.08
BS1200A 12.00 32 35 51 119 41 4.30
BS1350A 13.50 35 38 57 132 45 6.01
BS1700A 17.00 38 41 60 148 49 8.02
BS2500A 25.00 45 50 73 178 63.5 13.78
BS3500A 35.00 50 57 83 197 73 20.41
BS5500A 55.00 65 70 105 260 90 39.00
