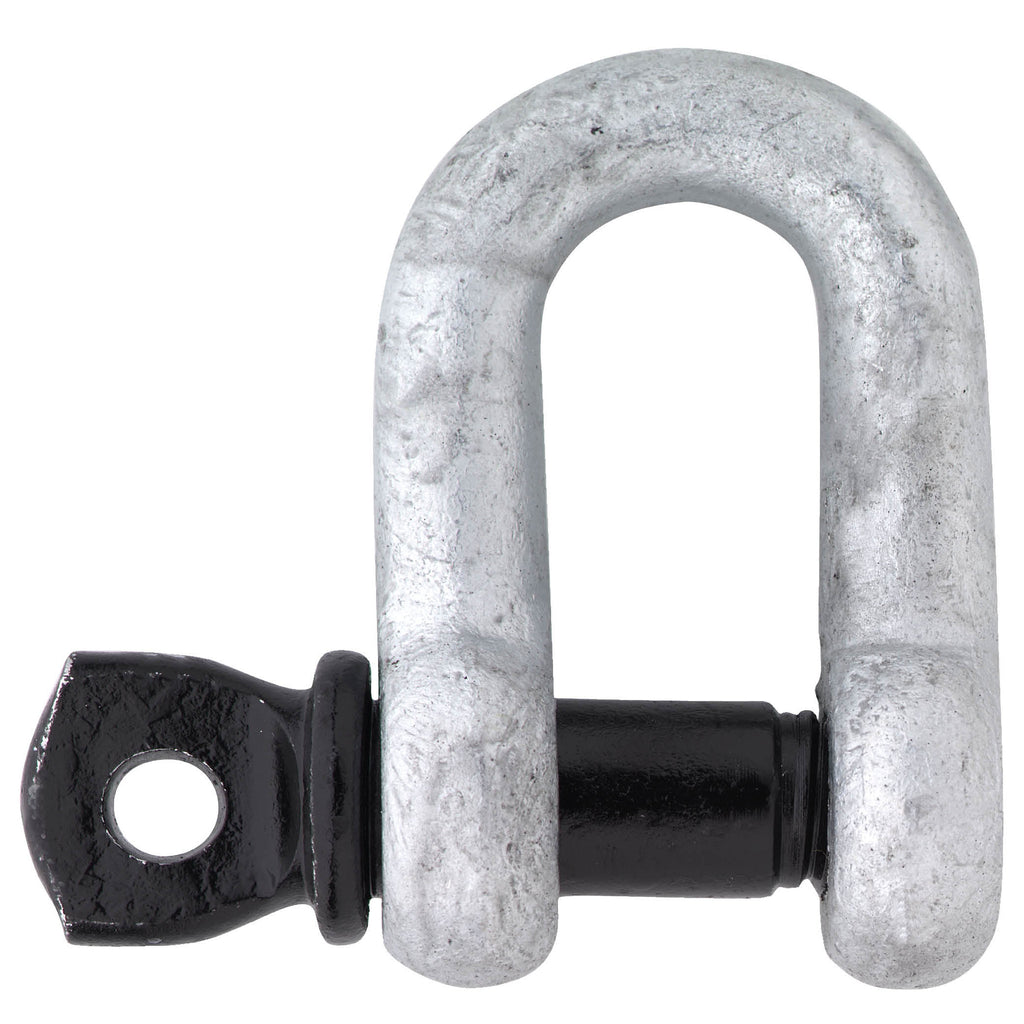

Fed Spec D-Shackle With Screw Pin

Fed Spec D-Shackle With Screw Pin
Price on Request

Black Pin US Fed Spec RR-C-271 shackles are high quality items that are hard stamped with a batch number to ensure complete traceability back to the product manufacturer.

The range includes Bow and D-Shackles with a choice of either screw or safety pins.


User Manual
Black Pin US Fed Spec D-Shackle With Screw Pin



Type IV B Class 2

With screw collar pin

S.F. 6:1 (MBL = 6 x WLL)

Hot dip galvanized





Code WLL [tonnes] Body D [mm] Pin d [mm] Jaw a [mm] Inside lth C [mm] Weight [kg/pc]
DS033A 0.33 5 6 10 19 0.02
DS050A 0.50 6 8 13 22 0.05
DS075A 0.75 8 10 14 26 0.07
DS100A 1.00 10 11 17 32 0.10
DS150A 1.50 11 13 18 36.5 0.18
DS200A 2.00 13 16 21 41.5 0.26
DS325A 3.25 16 19 27 51 0.54
DS475A 4.75 19 22 32 60.5 1.02
DS650A 6.50 22 25 37 71.5 1.43
DS850A 8.50 25 28 43 81 2.15
DS950A 9.50 28 32 46 90 3.08
DS1200A 12.00 32 35 51 100 4.11
DS1350A 13.50 35 38 57 111 5.26
DS1700A 17.00 38 41 60 122 7.23
DS2500A 25.00 45 50 73 146 12.13
DS3500A 35.00 50 57 83 172 19.19
DS5500A 55.00 65 70 105 260 39.00
