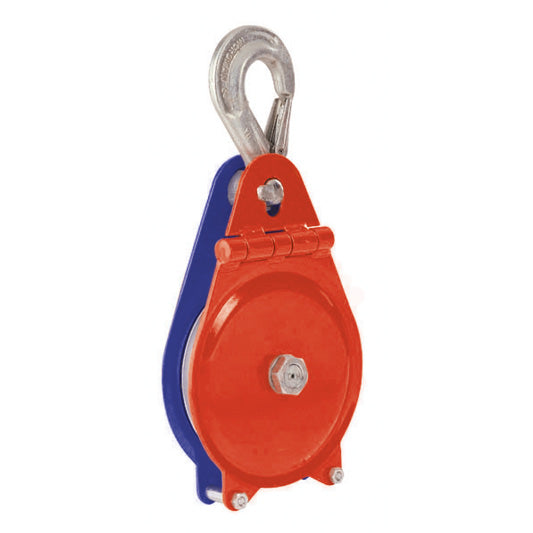

Rope Pulley With Side Opening Plate (SRLK)
Pewag rope pulley. Roller made of steel, electro galvanized with ball bearings and powder coated side plates. Simple insertion of the rope thanks to flap mechanism.
| Code |
Tensile force [daN] |
Winch tensile force max. [daN] |
Pulley dia. [mm] |
Rope dia. max. [mm] |
Weight [kg/pc.] |
| SRLK 14 | 5,000 | 2,500 | 156 | 12 | 5.40 |
| SRLK 16 | 8,000 | 4,000 | 157 | 12 | 7.60 |
| SRLK 18 | 8,000 | 4,000 | 190 | 16 | 9.00 |
| SRLK 22 | 13,000 | 6,500 | 220 | 16 | 13.00 |
The stated tensile force is valid in case of ground course. The winch tensile force is valid in case of 180° deflection.
Please consider the safety instruction for proper use.
|
