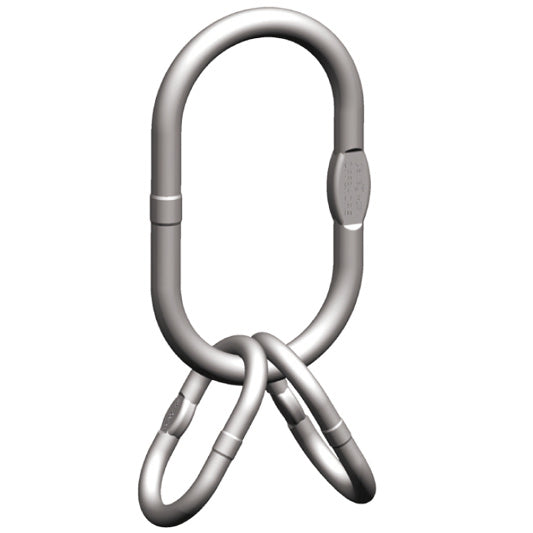

Pewag Winner Offshore Quad Master Link Assembly (VOS-FZN) DNV 2.7-1
Galvanized master link sub-assemblies (quad assemblies) for offshore container lifting purposes in wire rope slings. AOS type master links are used as the main link. Particularly suited to wire rope slings, due to the inner width to give space for wire rope thimbles.
For the manufacture of 4 leg slings. Allocation to max. usable crane hooks according to DIN 15401 stated in table.
- Only DNV approved galvanised master link sub-assemblies on the market
- Type approval certificate no. TAS00002JU
- Special galvanising process
- Master links can be MPI tested without loss of test accuracy
- Saves money long term, if used correctly, more than triples the life of a master link
- Eliminates the risk of hydrogen embrittlement during life span
- Clean, no contamination of container with red rust
- Safety factor 5:1Specially heat-treated - Grade 8 material
- CE marking
| Code | Consisting of |
Load capacity 0°-45° [tonnes] |
Used up to single hook in accordance with DIN 15401 |
e [mm] |
d [mm] |
t [mm] |
w [mm] |
d1 [mm] |
t1 [mm] |
w1 [mm] |
Weight [kg/pc] |
| VOS23/17-FZN | AOS23 + 2 BOS17 | 6.70 | 16 | 410 | 23 | 270 | 140 | 17 | 140 | 80 | 4.03 |
| VOS25/19-FZN | AOS25 + 2 BOS19 | 8.90 | 16 | 405 | 25 | 270 | 140 | 19 | 135 | 75 | 4.84 |
| VOS28/23-FZN | AOS28 + 2 BOS23 | 14.50 | 16 | 450 | 28 | 270 | 140 | 23 | 180 | 100 | 7.37 |
| VOS33/27-FZN | AOS33 + 2 BOS27 | 17.10 | 16 | 450 | 33 | 270 | 140 | 27 | 180 | 100 | 10.41 |
| VOS36/30-FZN |
AOS36 + 2 BOS30 |
24.10 | 16 | 460 | 36 | 270 | 140 | 30 | 190 | 110 | 13.15 |
| VOS40/33-FZN | AOS40 + 2 BOS33 | 28.10 | 20 | 545 | 40 | 275 | 150 | 33 | 270 | 140 | 19.14 |
| VOS45/36-FZN | AOS45 + 2 BOS36 | 38.30 | 25 | 610 | 45 | 340 | 180 | 36 | 270 | 140 | 25.81 |
| VOS50/40-FZN | AOS50 + 2 BOS40 | 45.00 | 32 | 625 | 50 | 350 | 190 | 40 | 275 | 150 | 33.26 |
| VOS56/50-FZN | AOS56 + 2 BOS50 | 67.00 | 32 | 750 | 56 | 400 | 200 | 50 | 350 | 190 | 56.39 |
| VOS70/56-FZN | AOS70 + 2 BOS56 | 85.00 | 50 | 860 | 70 | 460 | 250 | 56 | 400 | 200 | 89.62 |
