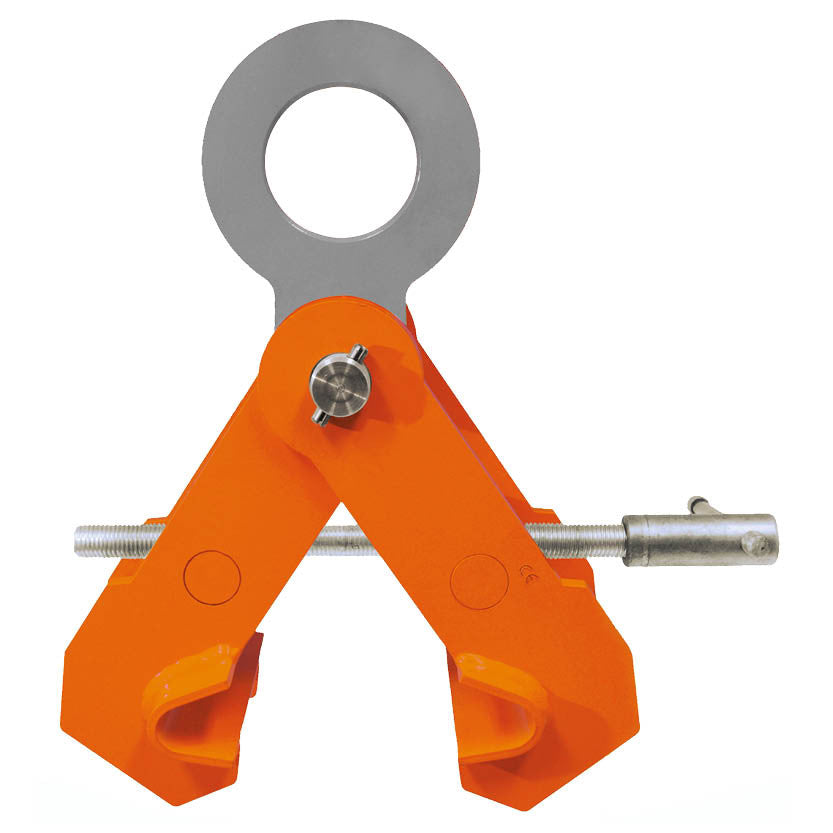

Pewag SVW/SVSW/SVSUW Screw Clamps
Price on Request
Only suitable for lifting and moving of steel beams and structures. The clamping force is evenly transferred to the jaws by means of a spindle. Can also be attached upside down and be used as a (temporary) lifting point. Has equal opening and closing of both jaws for simple and quick assembly. Lifting capacity and jaw opening are clearly engraved in the body.
SVSUW
| Code | Load capacity [kg] | Jaw opening R [mm] | S [mm] | T [mm] | V-max [mm] | U-max [mm] | H [mm] | x [mm] | Weight [kg/pc.] |
| SVW1T | 1000 | 75-190 | 30 | 73,50 | 357 | 345 | 113-192 | 120 | 5 |
| SVW2T | 2000 | 75-190 | 30 | 73,50 | 357 | 345 | 113-192 | 120 | 5 |
| SVW3T | 3000 | 75-190 | 30 | 73,50 | 357 | 345 | 113-192 | 120 | 5 |
| SVW4T | 4000 | 150-300 | 40 | 80 | 450 | 422 | 185-240 | 180 | 15 |
| SVW5T | 5000 | 150-300 | 40 | 80 | 450 | 422 | 185-240 | 180 | 15 |
| SVW10T | 10000 | 350-450 | 95 | 88 | 695 | 653 | 400-447 | 200 | 50 |
| SVSW2T | 2000 | 75-420 | 30 | 73,50 | 540 | 428 | 114-275 | 120 | 7 |
| SVSW3T | 3000 | 75-420 | 30 | 73,50 | 540 | 428 | 114-275 | 120 | 7 |
| SVSW4T | 4000 | 150-560 | 40 | 80 | 708 | 545 | 173-362 | 180 | 18 |
| SVSW5T | 5000 | 150-560 | 40 | 80 | 708 | 545 | 173-362 | 180 | 19,50 |
| SVSUW3T | 3000 | 75-420 | 30 | 73,50 | 540 | 486 | 114-275 | 120 | 8 |
| SVSUW4T | 4000 | 150-560 | 40 | 80 | 708 | 613 | 173-362 | 180 | 21 |
| SVSUW5T | 5000 | 150-560 | 40 | 80 | 708 | 622 | 173-362 | 180 | 22 |
