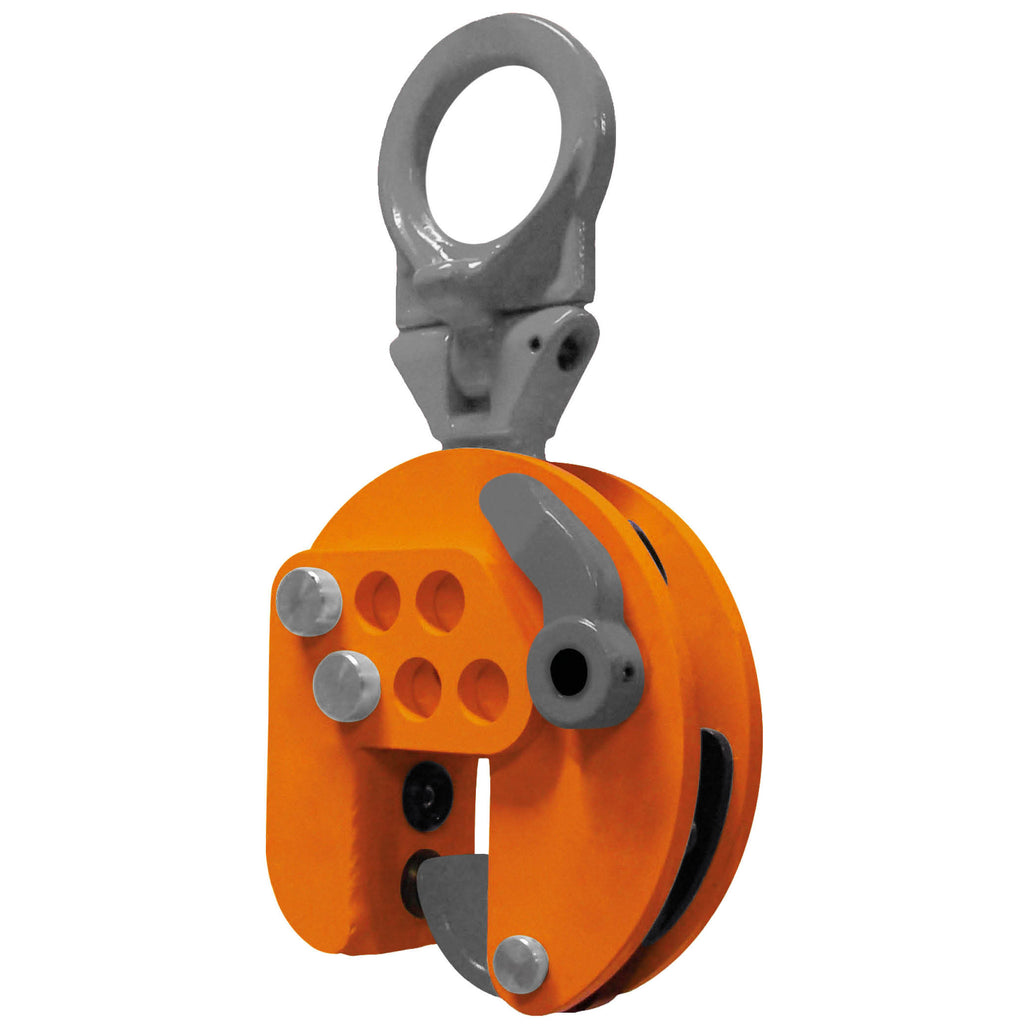

Pewag VEUW-A Vertical Lifting Clamp
Price on Request
Only one clamp is needed for different kind of jobs. Also the same clamp can be used if a big jaw opening is necessary. For lifting and moving of steel plates and structures from all positions.
Jaw opening from 0 - 95 mm. Adjustable by steps of 30 mm.
Capacity 3000 kg. Strong and lightweight construction.
| Code | Load capacity [kg] | Jaw opening R [mm] | S [mm] | T [mm] | U [mm] | V [mm] | W [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| VEUW-A3T | 3000 | 0-95 | 79 | 70 | 373 | 183-243 | 51 | 77 | 16 | 10 |
