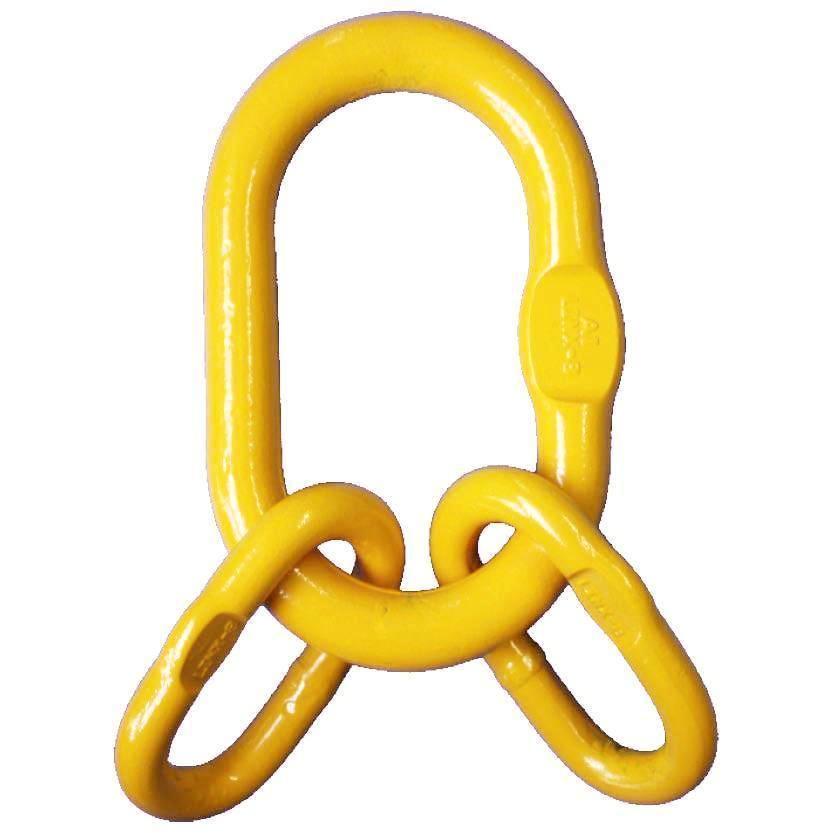

LINX-8 Grade 8 Quad Master Link Assembly (LA) EN1677-4
LINX-8 G8 Quad Master Link Assembly to EN 1677-4.
- For three and four leg Grade 8 chain slings
- Manufactured from alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | WLL 0-45° (t) | e [mm] | t [mm] | w [mm] | d (sub) [mm] | t (sub) [mm] | w (sub) [mm] | s (sub) [mm] | Weight [kg/pc.] |
| LA6 | 2.36 | 189 | 135 | 75 | 13 | 54 | 25 | 7 | 1.29 |
| LA7 | 3.15 | 195 | 135 | 75 | 13 | 60 | 38 | 7 | 1.35 |
| LA8 | 4.25 | 230 | 160 | 90 | 16 | 70 | 34 | 8 | 2.19 |
| LA10 | 6.70 | 265 | 180 | 100 | 18 | 85 | 40 | 11 | 3.20 |
| LA13 | 11.2 | 315 | 200 | 110 | 22 | 115 | 50 | 13 | 5.95 |
| LA16 | 17.00 | 400 | 260 | 140 | 26 | 140 | 65 | 17 | 9.51 |
| LA20 | 26.50 | 530 | 350 | 185 | 32 | 180 | 100 | 20 | 24.20 |
| LA22 | 31.50 | 530 | 350 | 185 | 36 | 180 | 100 | - | 25.45 |
| LA26 | 45.00 | 580 | 400 | 200 | 40 | 180 | 100 | - | 35.20 |
| LA32 | 63.00 | 660 | 460 | 250 | 50 | 200 | 110 | - | 66.46 |
