Pewag Winner 200 G10 Chain
Pewag Winner 200 G10 sling chains have a 25% higher working load compared to G8.
| Max working temperature | 200ºC |
| Surface finish | Shot blasted and clear lacquered |

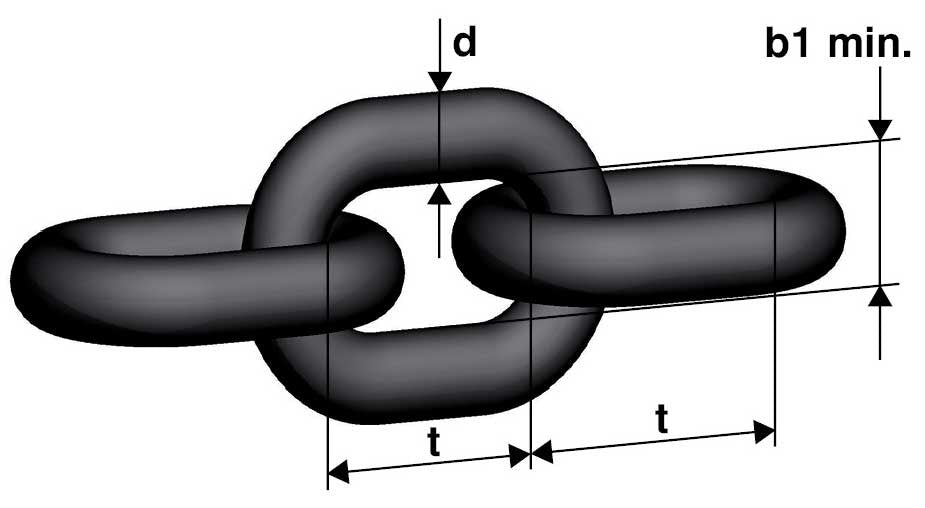

| Code | Diameter [d] | Delivery length [m] | Pitch [t] | Inside width [b1 min] | Inside width [b1 min] | Load capacity [kg] | Breaking force [kN] | Weight [kg/m] |
| WIN 5 200 | 5 | 100/50 | 16 | 8 | 19 | 1.000 | 39,3 | 0,61 |
| WIN 6 200 | 6 | 150/50 | 18 | 9 | 22 | 1.400 | 56,5 | 0,96 |
| WIN 7 200 | 7 | 300/50 | 21 | 10 | 25 | 1.900 | 77 | 1,20 |
| WIN 8 200 | 8 | 250/50 | 24 | 11 | 29 | 2.500 | 100 | 1,57 |
| WIN 10 200 | 10 | 150/50 | 30 | 14 | 36 | 4.000 | 157 | 2,46 |
| WIN 13 200 | 13 | 80/50 | 39 | 18 | 47 | 6,700 | 266 | 4,18 |
| WIN 16 200 | 16 | 50/25 | 48 | 22 | 58 | 10.000 | 402 | 6,28 |
| WIN 19 200 | 19 | 40/25 | 57 | 27 | 69 | 14.000 | 567 | 8,92 |
| WIN 22 200 | 22 | 30/25 | 66 | 30 | 79 | 19.000 | 760 | 11,88 |
| WIN 26 200 | 26 | 25 | 78 | 35 | 94 | 26.500 | 1,062 | 16,18 |
| WIN 32 200 | 32 | 20 | 96 | 43 | 115 | 40.000 | 1,610 | 24,10 |
