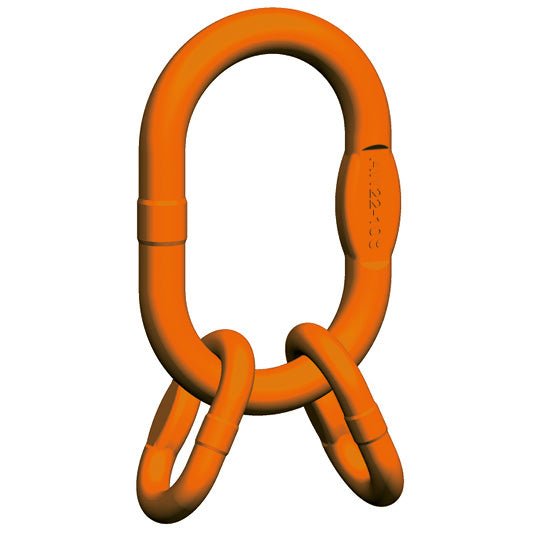

Pewag Winner Grade 10 Quad Master Link Assembly (VW) EN1677-4
Pewag Winner G10 Quad Master Link Assembly to EN 1677-4 with mechanical values for Grade 10.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard
| Code | Consisting of | Load capacity 0°-45° [tonnes] | Used up to single hook | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| VW5 | AW13 + 2 BW10 | 2.30 | Nr. 2,5 | 110 | 60 | 154 | 0,52 |
| VW6 | AW18 + 2 BW13 | 4.20 | Nr. 5 | 135 | 75 | 189 | 1,26 |
| VW7/8 | AW22 + 2 BW16 | 7.60 | Nr. 6 | 160 | 90 | 230 | 2,32 |
| VW10 | AW26 + 2 BW20 | 9.60 | Nr. 8 | 180 | 100 | 265 | 3,68 |
| VW13 | AW32 + 2 BW22 | 14.00 | Nr. 10 | 200 | 110 | 315 | 6,46 |
| VW16 | AW36 + 2 BW26 | 21.20 | Nr. 16 | 260 | 140 | 400 | 10,06 |
| VW19/20 | AW50 + 2 BW32 | 34.10 | Nr. 32 | 350 | 190 | 500 | 22,87 |
| VW22 | AW50 + 2 BW36 | 40.00 | Nr. 32 | 350 | 190 | 520 | 24,79 |
| VW26 | AW56 + 2 BW45 | 56.00 | Nr. 32 | 400 | 200 | 570 | 41,31 |
| VW32 | AW72 + 2 BW50 | 85.00 | Nr. 50 | 480 | 250 | 660 | 66,60 |
