Pewag Winner Grade 10 Transition Link (BW) EN1677-4

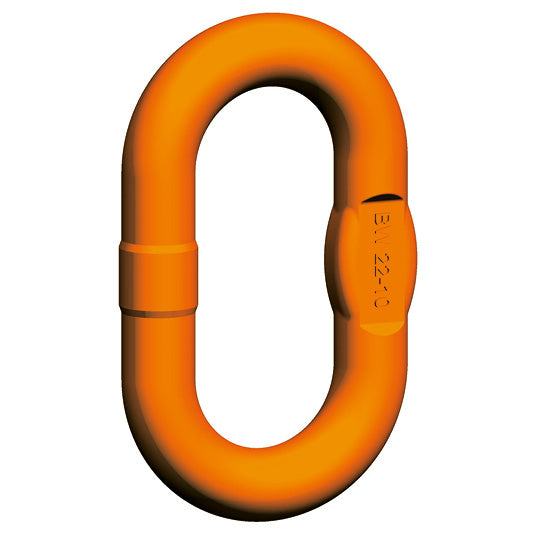

Pewag Winner G10 Transition Link to EN 1677-4 with mechanical values for Grade 10.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load Capacity [tonnes] | d [mm] | t [mm] | w [mm] | s [mm] | Weight [kg/pc] | 1- + 2-leg B I/II [mm] | 3- +4-leg B III/IV [mm] |
| BW 7 | 1.00 | 7 | 36 | 16 | 7 | 0,03 | 5 | - |
| BW 8* | 1.40 | 8 | 36 | 16 | - | 0,03 | 6 | - |
| BW 9 | 1.90 | 9 | 44 | 20 | - | 0,07 | 7 | - |
| BW 10 | 2.50 | 10 | 44 | 20 | - | 0,09 | 8 | 5 |
| BW 13 | 4.00 | 13 | 54 | 25 | 10 | 0,17 | 10 | 6 |
| BW 16 | 6.70 | 17 | 70 | 34 | 14 | 0,36 | 13 | 7+8 |
| BW 20 | 10.00 | 20 | 85 | 40 | - | 0,68 | 16 | 10 |
| BW 22 | 12.50 | 23 | 115 | 50 | 17 | 1,16 | - | 13 |
| BW 23* | 14.00 | 23 | 115 | 45 | 17 | 1,15 | 19 | - |
| BW 26 | 16.20 | 27 | 140 | 65 | 20 | 1,92 | - | 16 |
| BW 27* | 19.00 | 27 | 140 | 55 | 20 | 1,92 | 22 | - |
| BW 32 | 26.50 | 33 | 150 | 70 | 26 | 3,16 | 26 | 19 |
| BW 36 | 31.00 | 36 | 170 | 75 | - | 4,12 | - | 22 |
| BW 40 | 40.40 | 40 | 170 | 80 | - | 5,37 | 32 | - |
| BW 45* | 42.40 | 45 | 170 | 80 | - | 7,15 | - | 26 |
| BW 50 | 64.00 | 50 | 200 | 100 | - | 10,80 | - | 32 |
