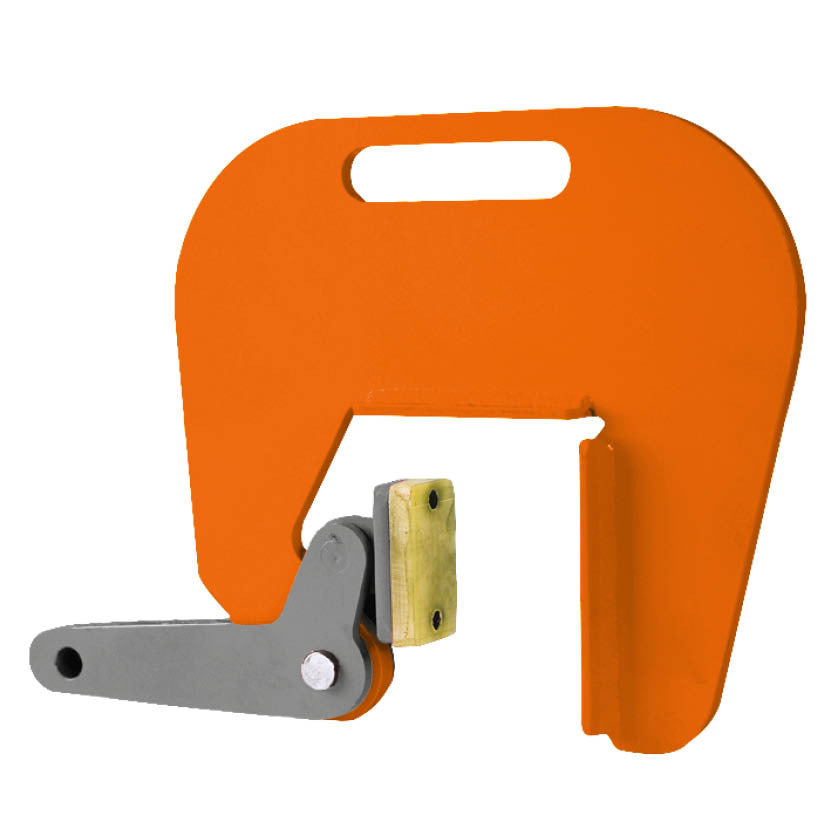

Pewag BCW / BCW-A Pipe Lifting Clamp
Price on Request
These clamps are preferably used for vertical lifting and moving of concrete pipes and wells. BCW/BCW-A clamps must always be used in pairs or per three clamps in combination with a chain sling.
The moveable side is fitted with a “special” high pressure plastic cover to protect load surface.
High tensile two or three leg chain slings available upon request.
BCW-A: R min. 50 mm/max. 220 mm.
Adjustable in steps of 25 mm.
| Code | Load capacity [kg] | Jaw opening R [mm] | U [mm] | S [mm] | W [mm] | T [mm] | X [mm] | Z [mm] | Y [mm] | Weight [kg/pc.] |
| BCW1T | 1000 | 60-120 | 326 | 169 | 97 | 12 | 60 | 40 | 12 | 10 |
| BCW-A1T | 1000 | 50-220 | 459 | 262 | 106 | 12 | 60 | 40 | 12 | 15 |
