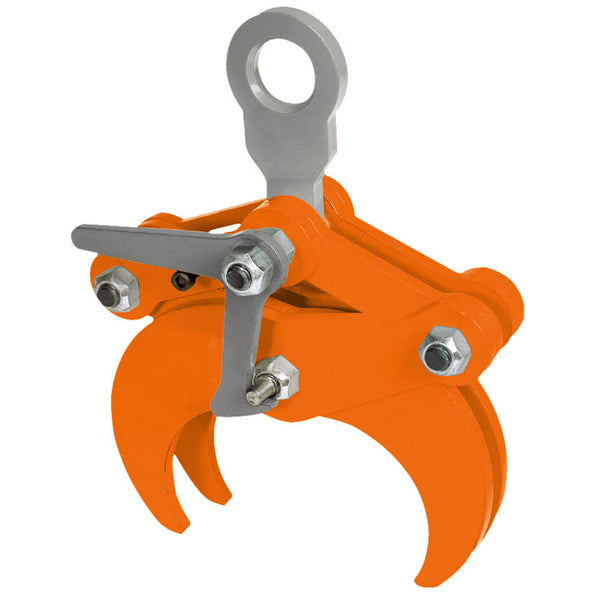

Pewag TLW Special Grab
Price on Request
For vertical lifting of tubes, bundles of tubes and solid round material.
| Code | Load capacity [kg] | Jaw opening R [mm] | V min-max [mm] | U min-max [mm] | T [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| TLW0.5T | 500 | 48,3-114,3 | 146-207 | 300-400 | 45 | 47 | 15 | 4,50 |
| TLW1T | 1000 | 114,3-219,1 | 110-170 | 430-615 | 45 | 47 | 15 | 9 |
| TLW2T | 2000 | 219,1-368 | 490-610 | 670-955 | 64 | 56 | 16 | 31 |
| TLW3T | 3000 | 368-508 | 590-710 | 875-1165 | 64 | 56 | 16 | 39 |
