Pewag VCW / VCEW / VMPW / VEMPW / VUW / VEUW Vertical Lifting Clamps With Hardened Pivot & Cam

Price on Request

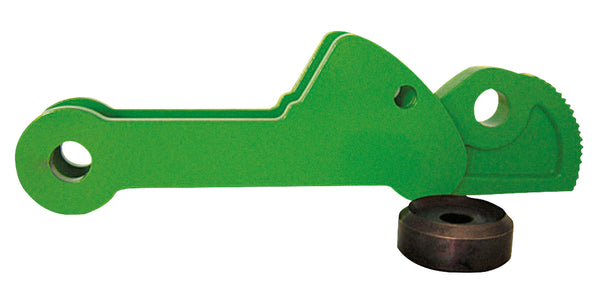

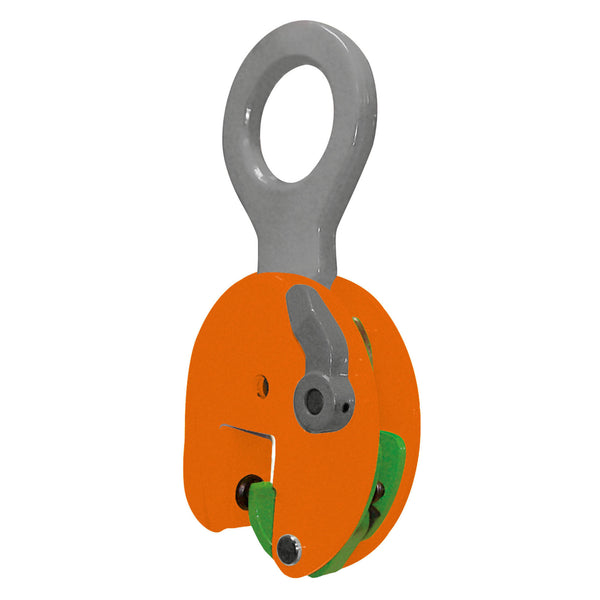

Equipped with an extra hardened pivot and cam for lifting and transporting steel plates with a hardness of max. 50 HrC (Hardox 400 and 500). These extra-hardened components may be used with clamp types VCW (VCEW), VMPW (VEMPW) and VUW (VEUW).

Further customized versions with other capacity and jaw-opening available upon request.

Code	Load capacity [kg]	Jaw opening R [mm]	S [mm]	T [mm]	U [mm]	V [mm]	W [mm]	X [mm]	Y [mm]	Weight [kg/pc.]
VCW-H0.75T	750	0-13	47	30	202	100	37	37	10	1,70
VCEW-H1T	1000	0-25	56	45	263	141	37	47	15	3,50
VCEW-H2T	2000	0-35	78	64	336	183	56	56	16	7
VCEW-H3T	3000	0-35	78	64	336	183	56	56	16	7
VCEW-H4.5T	4500	0-45	85	70	425	228	60	78	20	16
VCW-H6T	6000	0-32	114	75	490	225	78	78	20	19
VCEW-H7.5T	7500	0-55	111	75	522	267	70	86	20	26

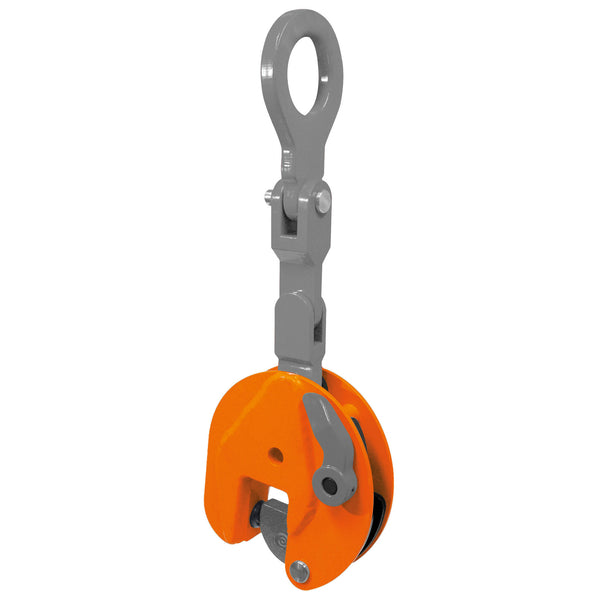

VMPW-H0.75T	750	0-13	47	30	307	100	37	37	10	2
VEMPW-H1T	1000	0-25	56	45	403	141	37	47	15	4,50
VEMPW-H2T	2000	0-35	78	64	516	183	56	56	16	8
VEMPW-H3T	3000	0-35	78	64	516	183	56	56	16	8
VEMPW-H4.5T	4500	0-45	85	70	650	228	60	78	20	19
VMPW-H6T	6000	0-32	114	75	760	225	78	78	20	24
VEMPW-H7.5T	7500	0-55	111	75	792	267	70	86	20	30,50

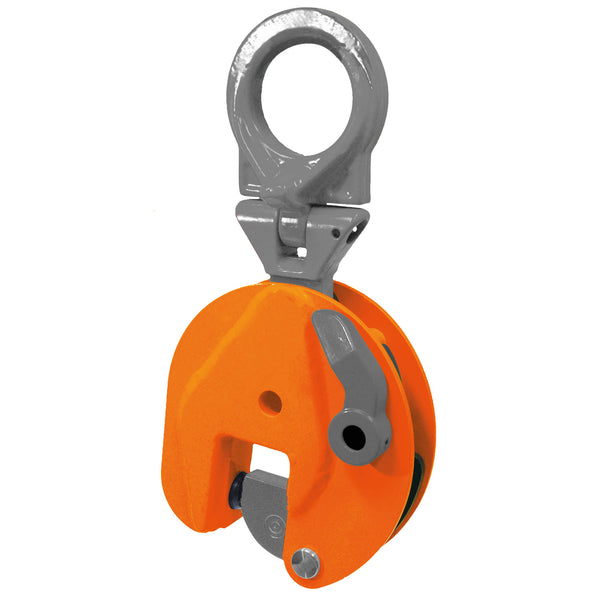

VUW-H0.75T	750	0-13	47	30	203	100	37	37	10	1,80
VEUW-H1T	1000	0-25	56	50	292	141	37	47	15	3,80
VEUW-H2T	2000	0-35	78	70	372	183	56	56	16	8
VEUW-H3T	3000	0-35	78	70	372	183	56	56	16	8
VEUW-H4.5T	4500	0-45	85	70	431	228	60	78	20	16,50
VUW-H6T	6000	0-40	114	78	528	225	78	78	32	22
VEUW-H7.5T	7500	0-55	111	78	560	267	70	86	32	28
