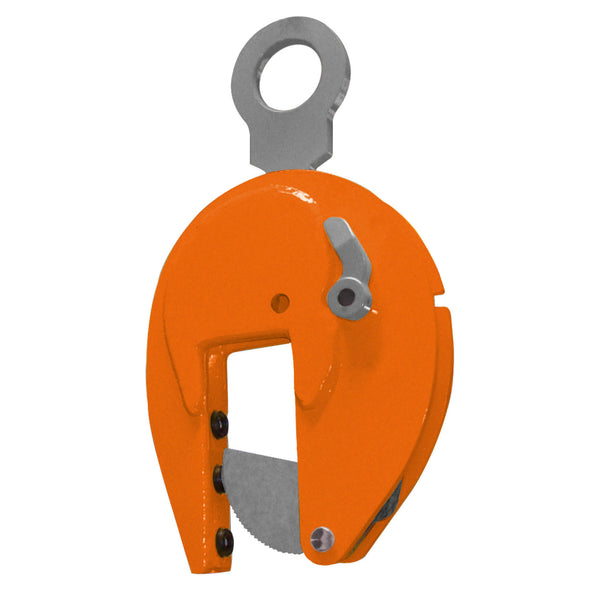

Pewag VHPW Vertical Lifting Clamp
Price on Request
For lifting and moving of Holland-profile (HP) steel rails and structures with HP-profiles.
Also useful as a “big-jaw” opening clamp (e.g. serving of lathes with large discs). Equipped as standard with three pivots for extra powerful clamping force.
The VHPW lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The clamp is locked in closed as well as in open position.
| Code | Load capacity [kg] | Jaw opening R [mm] | S [mm] | T [mm] | U [mm] | V [mm] | W [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| VHPW1T | 1000 | 0-80 | 207 | 70 | 520 | 283 | 67 | 64 | 16 | 19 |
| VHPW1.5T | 1500 | 0-80 | 207 | 70 | 520 | 283 | 67 | 64 | 16 | 19 |
| VHPW-A1.5T | 1500 | 0-155 | 160 | 70 | 523 | 256-333 | 62 | 66 | 16 | 18 |
