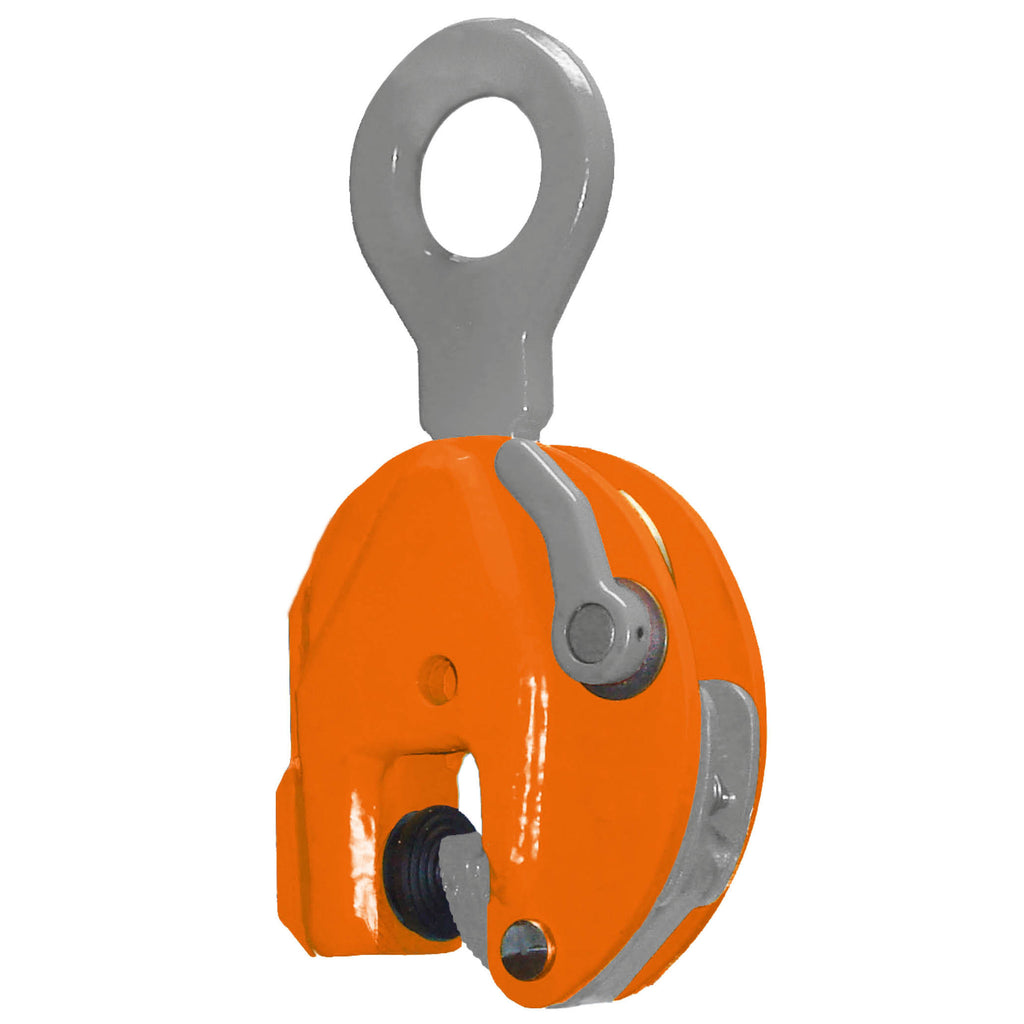

Pewag VJPW Vertical Lifting Clamp
Price on Request
For vertical lifting and moving of panels and plates.
If the clamp is being loaded, the cams will pull out sideways and will grip into the sides of the load.
The VJPW clamp is locked in closed as well as in open position.
Lifting capacity and jaw opening are clearly engraved in the body.
Clamp type VJPUW is equipped with a moveable lifting shackle.
This clamp has no restriction for a minimum working load.
| Code | Load capacity [kg] | Jaw opening R [mm] | S [mm] | T [mm] | U [mm] | V [mm] | W [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| VJPW0.25T | 250 | 0-13 | 54 | 30 | 202 | 113 | 50 | 37 | 10 | 1,90 |
| VJPUW0.25T | 250 | 0-13 | 54 | 30 | 202 | 113 | 50 | 37 | 10 | 2 |
