Pewag VNMW / VSNMW Vertical Lifting Clamp
Price on Request

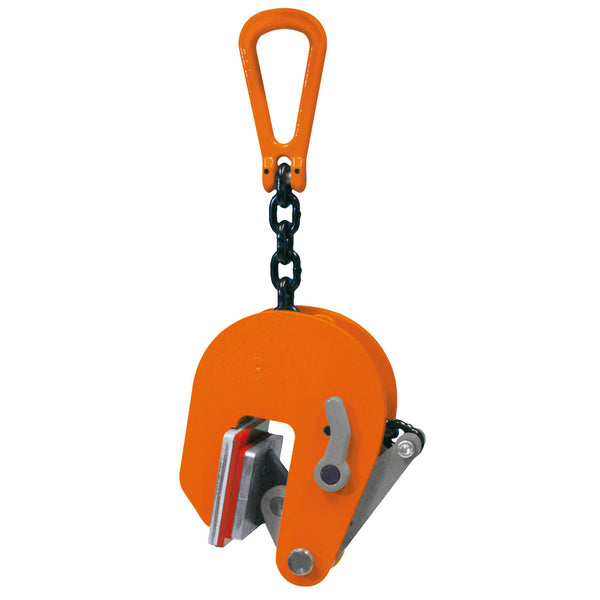

VNMW / VSNMW pewag winner is a non-marking clamp with two special synthetic pads.
The clamp can be used for lifting, handling and moving of (stainless) steel, aluminium, wood and marble plates and will not leave any marks.
The clamp is locked in closed as well as in open position and is mounted in the crane hook by means of a lifting chain with reeving link.
| Code | Load capacity [kg] | Jaw opening R [mm] | H [mm] | S [mm] | T [mm] | U [mm] | V [mm] | W [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| VNMW0.5T | 500 | 1-20 | 205 | 102 | 40 | 462 | 224 | 48 | 80 | 14 | 6 |
| VSNMW0.5T | 500 | 17-37 | 205 | 102 | 40 | 462 | 241 | 48 | 80 | 14 | 6 |
| VNMW1T | 1000 | 1-30 | 232 | 105 | 40 | 470 | 282 | 46 | 80 | 14 | 6,50 |
| VNMW1.5T | 1500 | 1-40 | 232 | 105 | 40 | 470 | 282 | 46 | 80 | 14 | 6,50 |
| VNMW2T | 2000 | 1-50 | 362 | 124 | 50 | 704 | 408 | 63 | 80 | 18 | 15 |
| VNMW3T | 3000 | 1-60 | 362 | 124 | 50 | 704 | 408 | 63 | 80 | 18 | 15,50 |
