Pewag SCCW Screw Clamps
Price on Request
Universal screw clamp for vertical and horizontal lifting and moving of a large variety of steel structures.

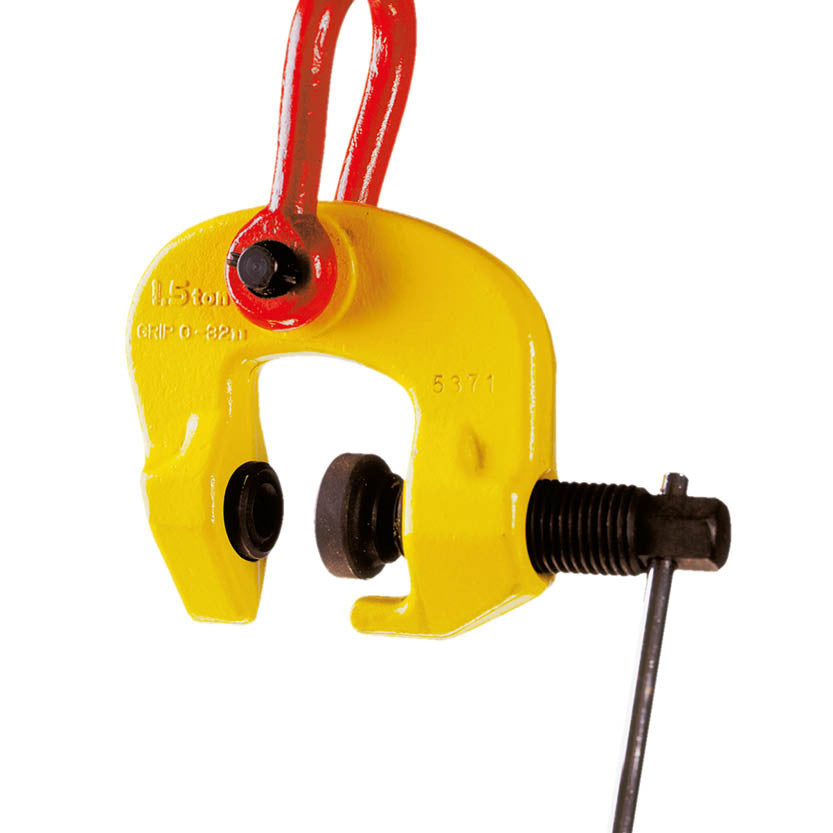

The SCCW screw clamp is fitted with a moveable cam on the thread spindle and a fixed pivot on the clamp body. This provides a powerful clamping force on the workpiece. The moveable lifting eye ensures a secure mounting of the clamp.
| Code | Load capacity [kg] | Jaw opening R [mm] | S [mm] | I [mm] | W [mm] | V [mm] | Z [mm] | U [mm] | H [mm] | T [mm] | X [mm] | Weight [kg/pc.] |
| SCCW0.5T | 500 | 0-35 | 18 | 27,50 | 26 | 108 | 158 | 211 | 82 | 25 | 27 | 1 |
| SCCW1T | 1000 | 0-30 | 44 | 42 | 46 | 210 | 175 | 204 | 128 | 38 | 46 | 3,20 |
|
SCCW1.5T |
1500 | 0-40 | 29 | 42 | 40 | 150 | 220 | 232 | 140 | 46 | 46 | 3,50 |
| SCCW3T | 3000 | 0-60 | 38 | 50 | 46 | 190 | 280 | 278 | 184 | 50 | 60 | 7,80 |
| SCCW6T | 6000 | 0-75 | 76 | 63 | 76 | 255 | 291 | 365 | 214 | 80 | 69 | 18 |
| SCCW-W1T | 1000 | 50-100 | 88 | 42 | 54 | 225 | 258 | 273 | 190 | 45 | 46 | 6 |
| SCCW-W3T | 3000 | 25-75 | 76 | 49 | 60 | 215 | 250 | 291 | 191 | 50 | 54 | 7,80 |
