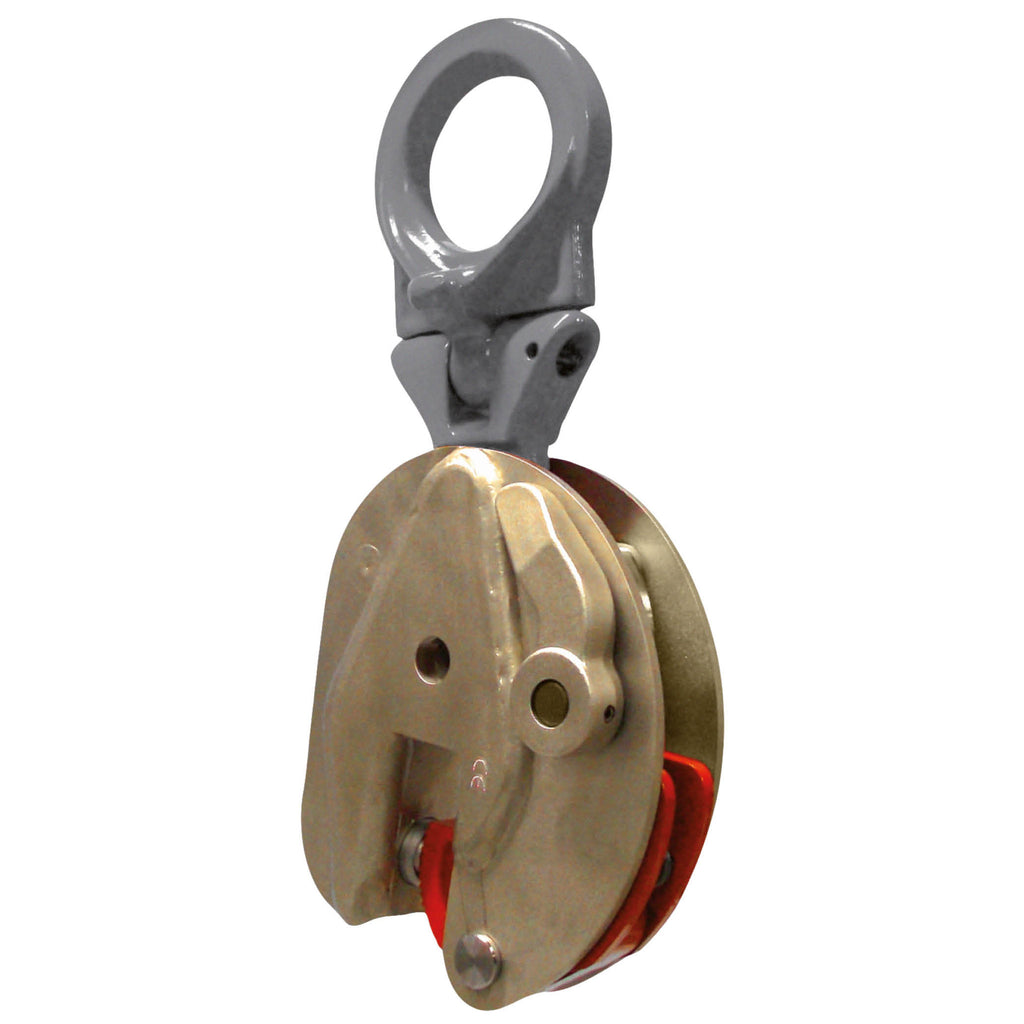

Pewag VCW-R / VCEW-R / VUW-R / VEUW-R Vertical Lifting Clamp
Price on Request
For lifting and moving of stainless steel plates and structures a VUW-R lifting clamp is available.
Pivot and cam are made of stainless steel.
Body and lock lever are nickel plated to prevent corrosion due to carbon contamination.
| Code | Load capacity [kg] | Jaw opening R [mm] | S [mm] | T [mm] | U [mm] | V [mm] | W [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| VCW-R0.75T | 750 | 0-13 | 47 | 30 | 202 | 100 | 37 | 37 | 10 | 1.70 |
| VCEW-R1T | 1000 | 0-25 | 56 | 45 | 263 | 141 | 37 | 47 | 15 | 3.50 |
| VCEW-R2T | 2000 | 0-35 | 78 | 64 | 336 | 183 | 56 | 56 | 16 | 7.00 |
| VCEW-R3T | 3000 | 0-35 | 78 | 64 | 336 | 183 | 56 | 56 | 16 | 7.00 |
| VCEW-R4.5T | 4500 | 0-45 | 85 | 70 | 425 | 228 | 60 | 78 | 20 | 16.00 |
| VCEW-R6T | 6000 | 0-50 | 114 | 75 | 490 | 259 | 82 | 78 | 20 | 21.00 |
| VCEW-R7.5T | 7500 | 0-55 | 111 | 75 | 522 | 267 | 70 | 86 | 20 | 26.00 |
| VUW-R0.75T | 750 | 0-13 | 47 | 30 | 203 | 100 | 37 | 37 | 10 | 1.80 |
| VEUW-R1T | 1000 | 0-25 | 56 | 50 | 292 | 141 | 37 | 47 | 15 | 3.80 |
| VUW-R2T | 2000 | 0-20 | 78 | 70 | 370 | 165 | 54 | 56 | 16 | 7.00 |
| VEUW-R2T | 2000 | 0-35 | 78 | 70 | 372 | 183 | 56 | 56 | 16 | 8.00 |
| VEUW-R3T | 3000 | 0-35 | 78 | 70 | 372 | 183 | 56 | 56 | 16 | 8.00 |
| VEUW-R4.5T | 4500 | 0-45 | 85 | 70 | 431 | 228 | 60 | 78 | 20 | 16.50 |
| VEUW-R6T | 6000 | 0-50 | 114 | 78 | 527 | 259 | 82 | 78 | 32 | 24.00 |
| VEUW-R7.5T | 7500 | 0-55 | 111 | 78 | 560 | 267 | 70 | 86 | 32 | 28.00 |
