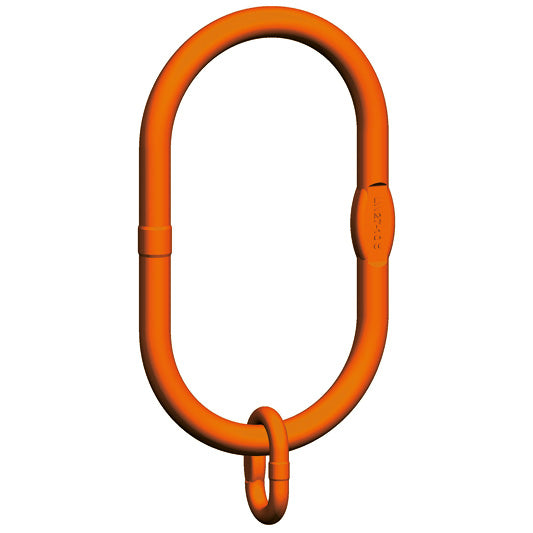

Pewag Winner Grade 10 Oversize Master Link Assembly (VLW1) EN1677-4
Pewag Winner G10 Oversize Master Link Assembly to EN 1677-4 with mechanical values for Grade 10.
- For use in single leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Consisting of | Load capacity 0°-45° [tonnes] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| VLW1-6/7/8 | LW22 + BW13 | 2.50 | Nr. 25 | 22 | 340 | 180 | 394 | 3,40 |
| VLW1-10 | LW27 + BW16 | 4.00 | Nr. 25 | 27 | 340 | 180 | 410 | 4,80 |
| VLW1-13 | LW27 | 6.70 | Nr. 25 | 27 | 340 | 180 | 340 | 4,40 |
| VLW1-16 | LW32 | 10.00 | Nr. 25 | 33 | 340 | 180 | 340 | 6,70 |
| VLW1-19/22 | LW40 | 19.00 | Nr. 25 | 40 | 340 | 180 | 340 | 10,00 |
