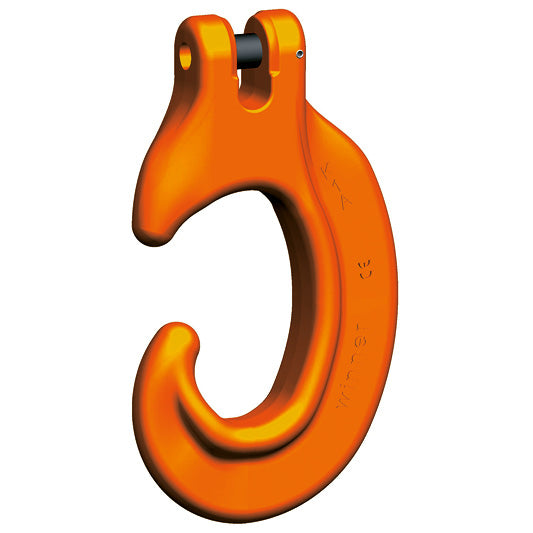

Pewag Winner Grade 10 Clevis C Hook (KCHW) EN1677-1
Pewag Winner G10 Clevis C-Hook to EN 1677-1 With Mechanical Values For Grade 10.
- Terminal fitting for chain sling assemblies
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | d [mm] | b [mm] | g [mm] | Weight [kg/pc.] |
| KCHW7 | 1.90 | 91 | 28 | 9 | 74 | 20 | 0.52 |
| KCHW8 | 2.50 | 90 | 28 | 10 | 74 | 20 | 0.51 |
| KCHW10 | 4.00 | 129 | 39 | 12.5 | 107 | 28 | 1.51 |
| KCHW13 | 6.70 | 166 | 51 | 16 | 137 | 41 | 3.13 |
| KCHW16 | 10.00 | 205 | 60 | 20 | 166 | 45 | 5.56 |
