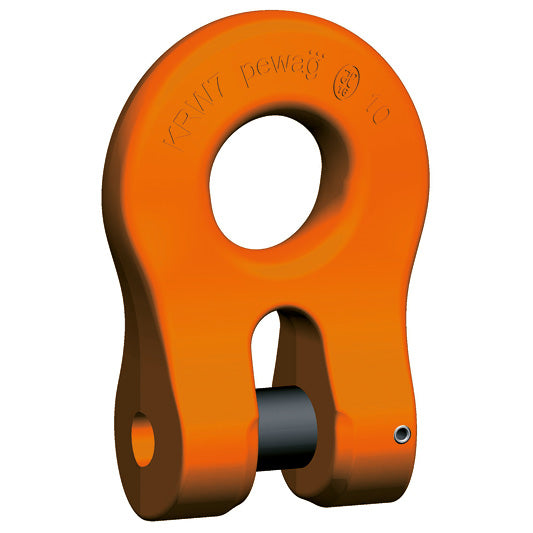

Pewag Winner Grade 10 Clevis Coupling Ring (KRW) EN1677-1
Pewag Winner G10 Clevis Coupling Ring to EN 1677-1 With Mechanical Values For Grade 10.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load Capacity [tonnes] | e [mm] | s [mm] | a [mm] | b [mm] | f [mm] | d [mm] | Weight [kg/pc] |
| KRW 5/6 | 1.40 | 31 | 7 | 18 | 38 | 8 | 7 | 0,08 |
| KRW 7 | 1.90 | 43 | 10 | 24 | 54 | 11 | 9 | 0,20 |
| KRW 8 | 2.50 | 43 | 10 | 24 | 54 | 11 | 10 | 0,20 |
| KRW 10 | 4.00 | 51 | 12 | 28 | 63 | 14 | 12,50 | 0,36 |
| KRW 13 | 6.70 | 63 | 15 | 33 | 76 | 17 | 16 | 0,70 |
| KRW 16 | 10.00 | 74 | 18 | 40 | 88 | 20 | 20 | 1,21 |
| KRW 19/20 | 16.00 | 94 | 23 | 50 | 114 | 24 | 24 | 2,38 |
| KRW 22 | 19.00 | 102 | 25 | 50 | 122 | 27 | 27 | 3,21 |
