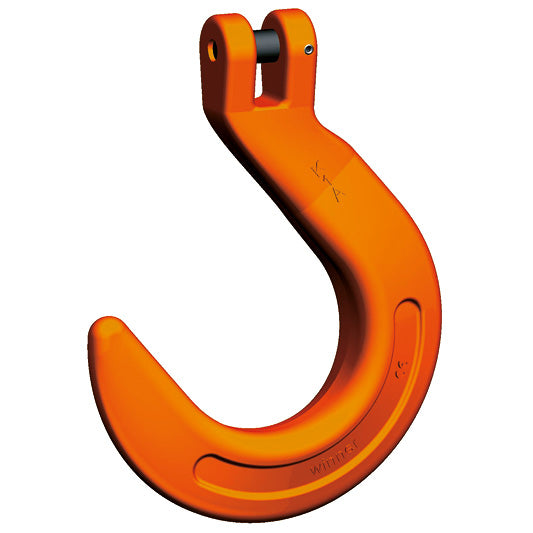

Pewag Winner Grade 10 Clevis Foundry Hook (KFW) EN1677-1
Pewag Winner G10 Clevis Foundry Hook to EN 1677-1 With Mechanical Values For Grade 10.
- Terminal fitting for chain sling assemblies
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | d [mm] | b [mm] | Weight [kg/pc.] |
| KFW7 | 1.90 | 121 | 29 | 25 | 64 | 118 | 1,00 |
| KFW8 | 2.50 | 120 | 29 | 25 | 64 | 118 | 1,00 |
| KFW10 | 4.00 | 140 | 35 | 32 | 76 | 143 | 1,78 |
| KFW13 | 6.70 | 170 | 42 | 40 | 89 | 170 | 2,96 |
