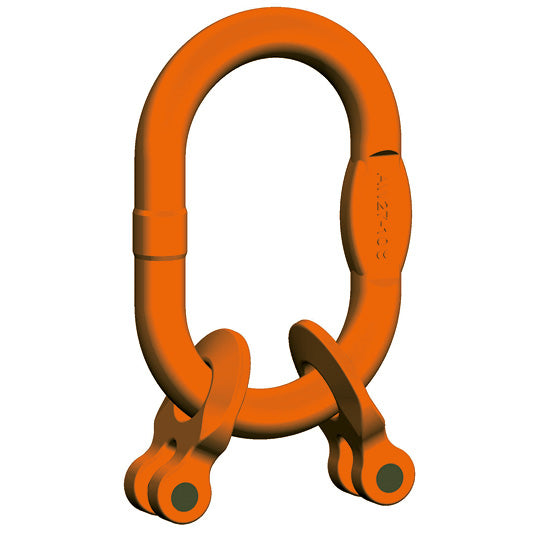

Pewag Winner Grade 10 Clevis Master Link Set (KAGW2) EN818-4
Pewag Winner G10 Clevis Master Link Set to EN 818-4 with mechanical values for Grade 10.
- For use with two leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4.
| Code | Load capacity 0°-45°/45°-60° [tonnes] | For chain [mm] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| KAGW2-5/6 | 2.00 / 1.40 | 5 + 6 | Nr. 2,5 | 13 | 110 | 60 | 141 | 0,50 |
| KAGW2-7 | 2.65 / 1.90 | 7 | Nr. 2,5 | 16 | 110 | 60 | 153 | 0,93 |
| KAGW2-8 | 3.55 / 2.50 | 8 | Nr. 5 | 19 | 135 | 75 | 178 | 1,26 |
| KAGW2-10 | 5.60 / 4.00 | 10 | Nr. 6 | 23 | 160 | 90 | 211 | 2,32 |
| KAGW2-13 | 9.50 / 6.70 | 13 | Nr. 8 | 27 | 180 | 100 | 243 | 3,86 |
| KAGW2-16 | 14.00 / 10.00 | 16 | Nr. 10 | 33 | 200 | 110 | 274 | 6,56 |
| KAGW2-19/20 | 20.00 / 14.00 | 19 + 20 | Nr. 16 | 36 | 260 | 140 | 350 | 10,98 |
| KAGW2-22 | 26.50 / 19.00 | 22 | Nr. 25 | 45 | 340 | 180 | 437 | 19,24 |
