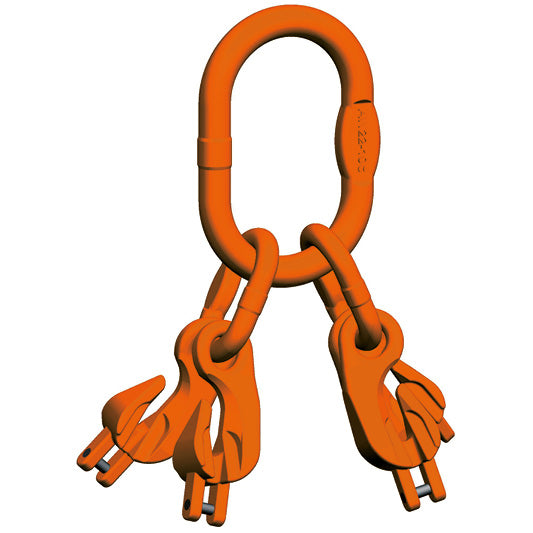

Pewag Winner Grade 10 Master Link With Shorteners (VXKW4) EN818-4
Pewag Winner G10 Clevis Master Link Set With Integral XKW Shorteners to EN 818-4 With Mechanical Values For Grade 10.
- For use with four leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4.
| Code | Load capacity 0°-45°/45°-60° [tonnes] | For chain [mm] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| VXKW4-5 | 2.00 / 1.50 | 5 | Nr. 2,5 | 13 | 110 | 60 | 238 | 1,72 |
| VXKW4-6 | 3.00 / 2.12 | 6 | Nr. 5 | 19 | 135 | 75 | 273 | 2,40 |
| VXKW4-7 | 4.00 / 2.80 | 7 | Nr. 6 | 23 | 160 | 90 | 352 | 4,84 |
| VXKW4-8 | 5.30 / 3.75 | 8 | Nr. 6 | 23 | 160 | 90 | 352 | 4,84 |
| VXKW4-10 | 8.00 / 6.00 | 10 | Nr. 8 | 27 | 180 | 100 | 424 | 8,82 |
| VXKW4-13 | 14.00 / 10.00 | 13 | Nr. 10 | 33 | 200 | 110 | 518 | 17,26 |
| VXKW4-16 | 21.20 / 15.00 | 16 | Nr. 16 | 36 | 260 | 140 | 633 | 29,26 |
