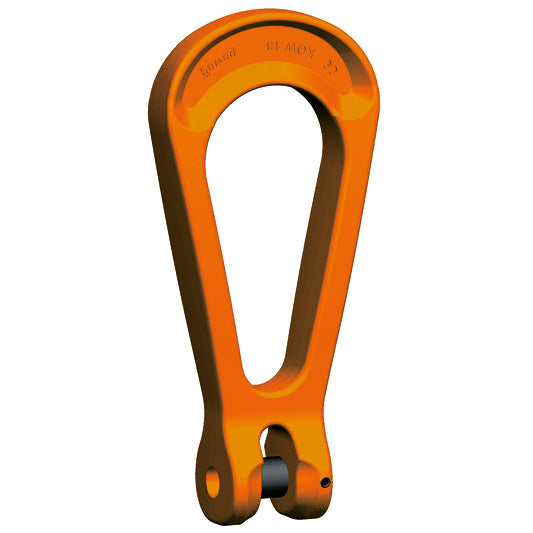

Pewag Winner Grade 10 Clevis Reeving Link (KOW) EN1677-1
Pewag Winner G10 Clevis Reeving Link to EN 1677-1 With Mechanical Values For Grade 10.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [kg] | e [mm] | t [mm] | w [mm] | d [mm] | s [mm] | Weight [kg/pc.] |
| KOW7 | 1.900 | 92 | 70 | 34 | 9 | 9 | 0,28 |
| KOW8 | 2.500 | 91 | 70 | 34 | 10 | 9 | 0,30 |
| KOW10 | 4.000 | 128 | 102 | 50 | 13 | 12 | 0,70 |
| KOW13 | 6.700 | 169 | 136 | 66 | 16 | 15 | 1,40 |
| KOW16 | 10.000 | 214 | 172 | 83 | 20 | 18 | 2,74 |
