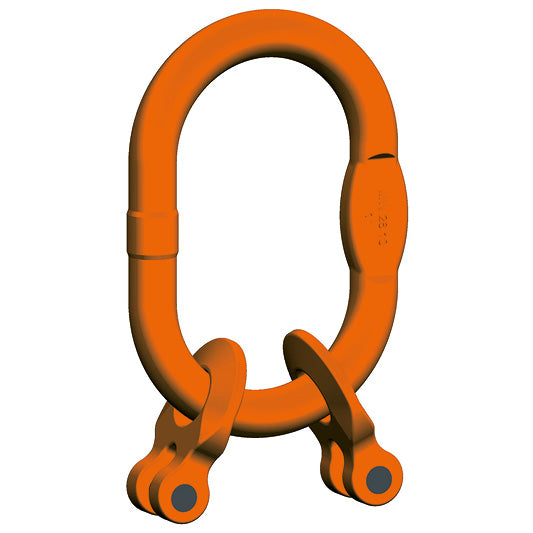

Pewag Winner Grade 10 Enlarged Clevis Master Link Set (KMGW2) EN818-4
Pewag Winner G10 Enlarged Clevis Master Link Set to EN 818-4 with mechanical values for Grade 10.
- For use with two leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4.
| Code | Load capacity 0°-45°/45°-60° [tonnes] | For chain [mm] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| KMGW2-5/6 | 2.00 / 1.40 | 5 + 6 | Nr. 4 | 14 | 120 | 70 | 151 | 0,60 |
| KMGW2-8 | 3.55 / 2.50 | 8 | Nr. 6 | 19 | 160 | 95 | 203 | 1,49 |
| KMGW2-10 | 5.60 / 4.00 | 10 | Nr. 10 | 23 | 160 | 110 | 211 | 2,41 |
| KMGW2-13 | 9.50 / 6.70 | 13 | Nr. 13 | 27 | 190 | 110 | 253 | 4,05 |
| KMGW2-16 | 14.00 / 10.00 | 16 | Nr. 16 | 33 | 230 | 130 | 304 | 7,20 |
