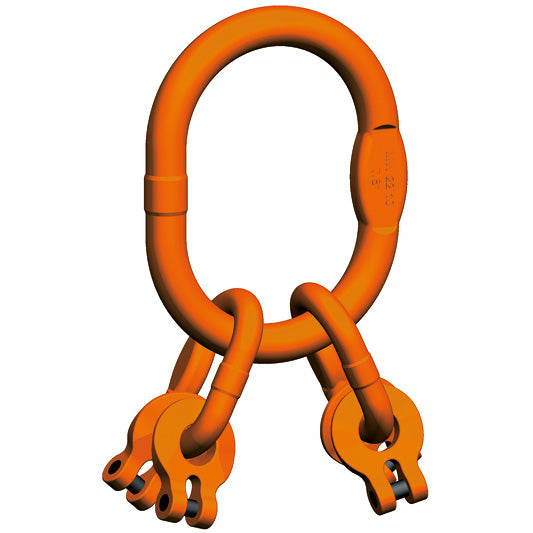

Pewag Winner Grade 10 Enlarged Clevis Master Link Set (KMGW4) EN818-4
Pewag Winner G10 Enlarged Clevis Master Link Set to EN 818-4 with mechanical values for Grade 10.
- For use with four leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4.
| Code | Load capacity 0°-45°/45°-60° [tonnes] | For chain [mm] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| KMGW4-5/6 | 3.00 / 2.12 | 5 + 6 | Nr. 4 | 19 | 160 | 95 | 245 | 1,75 |
| KMGW4-8 | 5.30 / 3.75 | 8 | Nr. 10 | 23 | 160 | 110 | 273 | 3,21 |
| KMGW4-10 | 8.00 / 6.00 | 10 | Nr. 10 | 27 | 190 | 110 | 326 | 5,45 |
| KMGW4-13 | 14.00 / 10.00 | 13 | Nr. 12 | 33 | 230 | 130 | 408 | 9,90 |
| KMGW4-16 | 21.20 / 15.00 | 16 | Nr. 20 | 38 | 275 | 150 | 489 | 16,00 |
