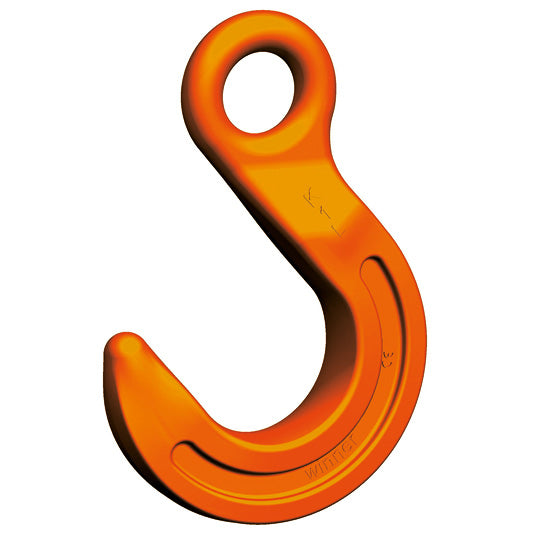

Pewag Winner Grade 10 Eye Foundry Hook (FW) EN1677-1
Pewag Winner G10 Eye Type Foundry Hook to EN 1677-1 With Mechanical Values For Grade 10.
- Terminal fitting for chain slings and wire ropes
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | d1 [mm] | d2 [mm] | g [mm] | b [mm] | Weight [kg/pc.] |
| FW7/8 | 2.50 | 131 | 29 | 25 | 24 | 11 | 64 | 118 | 0,92 |
| FW10 | 4.00 | 158 | 35 | 32 | 31 | 14 | 64 | 143 | 1,77 |
| FW13 | 6.70 | 190 | 42 | 40 | 39 | 17 | 89 | 170 | 2,82 |
| FW16 | 10.00 | 224 | 50 | 46 | 47 | 22 | 102 | 200 | 5,03 |
| FW19/20 | 16.00 | 260 | 61 | 54 | 56 | 28 | 114 | 231 | 9,24 |
| F22 (G8) | 15.00 | 265 | 70 | 61 | 47 | 30 | 127 | 260 | 9,31 |
| F26 (G8) | 21.20 | 305 | 80 | 72 | 54 | 34 | 136 | 280 | 19,21 |
| F32 (G8) | 31.50 | 327 | 93 | 83 | 60 | 37 | 152 | 336 | 28,00 |
