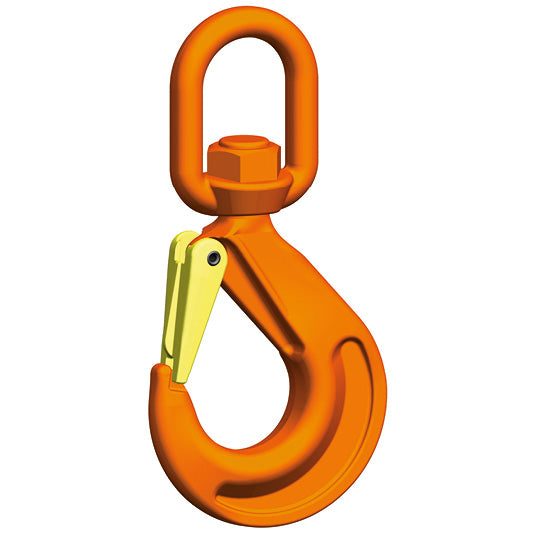

Pewag Winner Grade 10 Eye Swivel Hook With Ball Bearing (WSBW) EN1677-2
Pewag Winner G10 Eye Type Swivel Hook With Ball Bearing to EN 1677-2 With Mechanical Values For Grade 10.
- Fitted with ball bearing - will rotate under load!
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 120°C.
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | d1 [mm] | d2 [mm] | g1 [mm] | Weight [kg/pc.] |
| WSBW7/8 | 2.50 | 154 | 28 | 19 | 37 | 12 | 26 | 0.85 |
| WSBW10 | 4.00 | 183 | 33 | 25 | 41 | 16 | 30 | 1.56 |
| WSBW13 | 6.70 | 221 | 40 | 30 | 47 | 20 | 38 | 2.71 |
