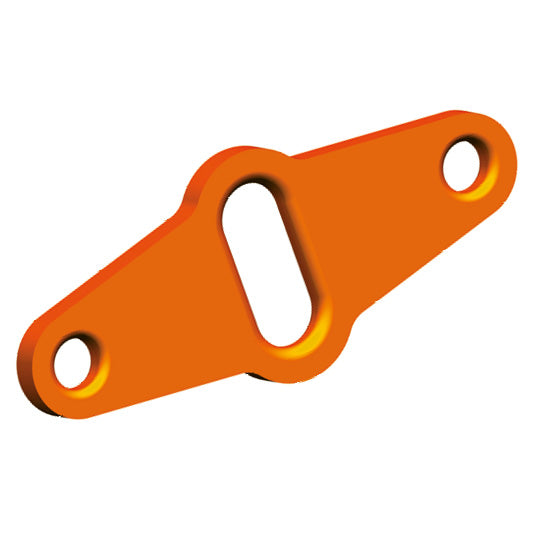

Pewag Winner Grade 10 Load Distributor (AGWW)
Pewag Winner G10 Load Distributor.
- Used to achieve a higher WLL on 4 leg chain slings
- When integrated, all four legs can be considered load bearing
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Connex for connection to top link |
WLL 0-45° (4 leg sling) [tonnes] |
WLL 45-60° (4 leg sling) [tonnes] |
a [mm] | e [mm] | d1 [mm] | d2 [mm] | h [mm] | h1 [mm] | s [mm] | Difference L1/L2 [chain links] | Weight [kg] |
| AGWW5/6 | CW8 | (5mm) 2.80 (6mm) 4.00 | (5mm) 2.00 (6mm) 2.80 | 148 | 35 | 16 | 22 | 11 | 9 | 10 | 6 for 5mm chain 5 for 6mm chain | 0.54 |
| AGWW7/8 | CW10 | (7mm) 5.30 (8mm) 7.10 | (7mm) 3.75 (8mm) 5.00 | 210 | 51 | 22 | 25 | 15.5 | 14 | 15 | 6 for 7mm chain 5 for 8mm chain | 1.75 |
| AGWW10 | CW13 | 11.20 | 8.00 | 180 | 32 | 25 | 32 | 23 | 15.5 | 15 | 4 | 1.56 |
| AGWW13 | CW16 | 19.00 | 13.20 | 240 | 53 | 32 | 40 | 27 | 20 | 20 | 4 | 3.60 |
| AGWW16 | CW19/20 | 28.00 | 20.00 | 300 | 77 | 40 | 50 | 32 | 25 | 25 | 4 | 7.18 |
| AGWW19/20 | CW32 | 40.00 | 28.00 | 390 | 79 | 50 | 70 | 45 | 30 | 30 | 5 | 13.20 |
| AGWW22 | CW32 | 53.00 | 37.50 | 350 | 124 | 60 | 70 | 50 | 35 | 30 | 5 | 14.70 |
| AGWW26 | 55t shackle | 75.00 | 53.00 | 400 | 130 | 70 | 75 | 60 | 40 | 40 | 5 | 28.8 |
