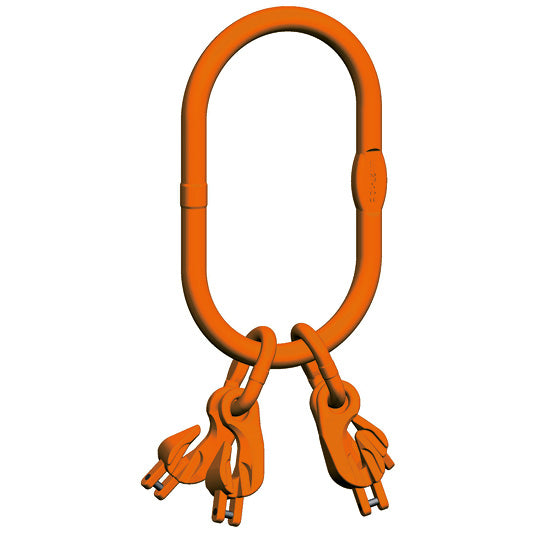

Pewag Winner Grade 10 Oversize Master Link With Shorteners (LXKW4) EN818-4

Pewag Winner G10 Oversize Clevis Master Link Set With Integral XKW Shorteners to EN 818-4 With Mechanical Values For Grade 10.
- For use with four leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4.
Code | |
---|---|
LXKW4-6 | |
Load capacity 0°-45°/45°-60° [tonnes] | 3.00 / 2.12 |
Used up to single hook | Nr. 25 |
d [mm] | 23 |
t [mm] | 340 |
w [mm] | 180 |
e [mm] | 478 |
Weight [kg/pc] | 4,70 |
LXKW4-8 | |
Load capacity 0°-45°/45°-60° [tonnes] | 5.30 / 3.75 |
Used up to single hook | Nr. 25 |
d [mm] | 27 |
t [mm] | 340 |
w [mm] | 180 |
e [mm] | 532 |
Weight [kg/pc] | 7,60 |
LXKW4-10 | |
Load capacity 0°-45°/45°-60° [tonnes] | 8.00 / 6.00 |
Used up to single hook | Nr. 25 |
d [mm] | 33 |
t [mm] | 340 |
w [mm] | 180 |
e [mm] | 584 |
Weight [kg/pc] | 13,10 |
LXKW4-13 | |
Load capacity 0°-45°/45°-60° [tonnes] | 14.00 / 10.00 |
Used up to single hook | Nr. 25 |
d [mm] | 40 |
t [mm] | 340 |
w [mm] | 180 |
e [mm] | 659 |
Weight [kg/pc] | 23,10 |
LXKW4-16 | |
Load capacity 0°-45°/45°-60° [tonnes] | 21.20 / 15.00 |
Used up to single hook | Nr. 25 |
d [mm] | 40 |
t [mm] | 340 |
w [mm] | 180 |
e [mm] | 713 |
Weight [kg/pc] | 33,10 |
Code | Load capacity 0°-45°/45°-60° [tonnes] | Used up to single hook | d [mm] | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
LXKW4-6 | 3.00 / 2.12 | Nr. 25 | 23 | 340 | 180 | 478 | 4,70 |
LXKW4-8 | 5.30 / 3.75 | Nr. 25 | 27 | 340 | 180 | 532 | 7,60 |
LXKW4-10 | 8.00 / 6.00 | Nr. 25 | 33 | 340 | 180 | 584 | 13,10 |
LXKW4-13 | 14.00 / 10.00 | Nr. 25 | 40 | 340 | 180 | 659 | 23,10 |
LXKW4-16 | 21.20 / 15.00 | Nr. 25 | 40 | 340 | 180 | 713 | 33,10 |
