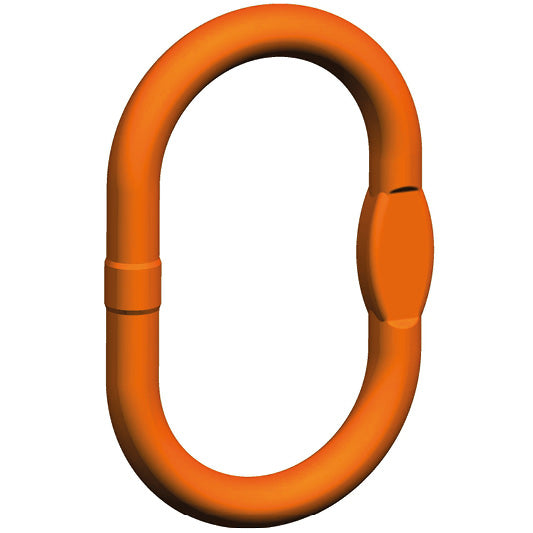

Pewag Winner Grade 10 Oversize Master Link Assembly (VSAW1) EN1677-4
Pewag Winner G10 Oversize Master Link Assembly to EN 1677-4 with mechanical values for Grade 10.
- For use with single leg chain slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Consisting of | Load capacity 0°-45° [tonnes] | Used up to single hook | d [mm] | t [mm] | w [mm] | Weight [kg/pc] |
| VSAW1-10/13 | SAW32 + BW20 | 10.00 | Nr. 50 | 33 | 500 | 250 | 10.00 |
| VSAW1-16 | SAW32 | 10.00 | Nr. 50 | 33 | 500 | 250 | 9.33 |
| VSAW1-19 | SAW40 | 16.00 | Nr. 50 | 40 | 460 | 250 | 13.13 |
| VSAW1-22 | SAW45 | 22.40 | Nr. 50 | 45 | 500 | 250 | 17.81 |
| VSAW1-26 | SAW50 | 33.60 | Nr. 50 | 50 | 460 | 250 | 21.00 |
| VSAW1-32 | SAW56 | 40.00 | Nr. 50 | 56 | 460 | 250 | 26.10 |
| VSAW1-32 320 | SAW60 | 40.00 | Nr. 100 | 60 | 800 | 320 | 48.00 |
