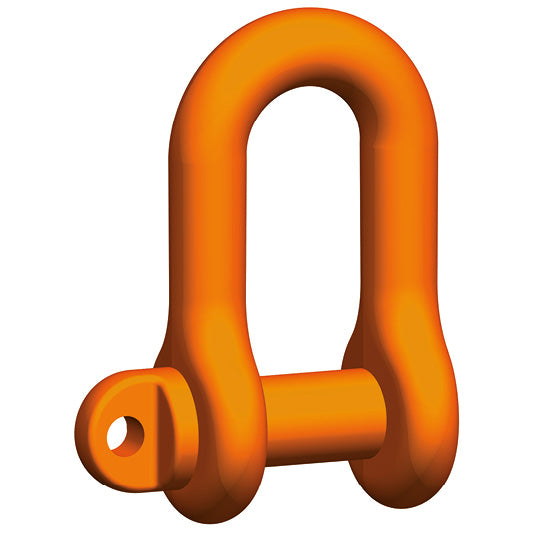

Pewag Winner Grade 10 Screw Pin D-Shackle (SCHW)
Pewag Winner G10 D-Shackle With A-Type Screw Pin.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | b [mm] | a [mm] | d1 [mm] | c [mm] | d2 [mm] | Weight [kg/pc.] |
| SCHW5 | 1.00 | 24 | 11 | 7 | 8 | 16 | 8 | 0.05 |
| SCHW6 | 1.40 | 30 | 14 | 8 | 10 | 20 | 10 | 0.09 |
| SCHW7/8 | 2.50 | 36 | 17 | 10 | 12 | 24 | 12 | 0.20 |
| SCHW10 | 4.00 | 49 | 21 | 13 | 15 | 32 | 16 | 0.30 |
| SCHW13 | 6.70 | 61 | 27 | 17 | 19 | 40 | 20 | 0.70 |
| SCHW16 | 10.00 | 73 | 33 | 21 | 23 | 48 | 24 | 1.30 |
