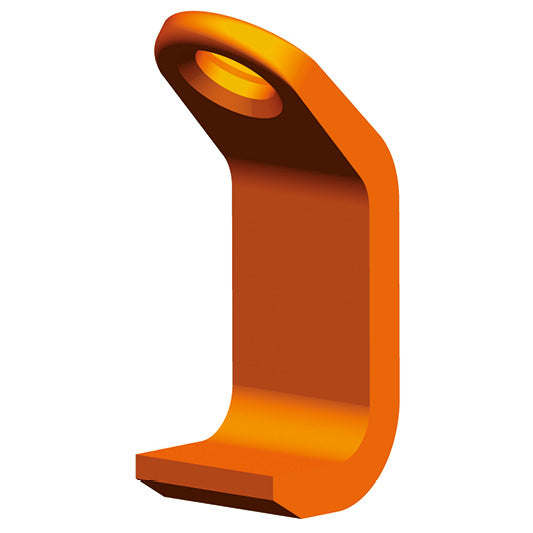

Pewag Winner Grade 10 Sheet Metal Plate Hook (BWW) EN1677-1
Pewag Winner G10 Sheet Metal Plate Hook to EN 1677-1 With Mechanical Values For Grade 10.
- For the lifting of metal sheets
- To be used on 3 and 4 leg slings with an angle of inclination between 15° and 30°
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | s [mm] | b [mm] | h [mm] | d1 [mm] | g [mm] | Weight [kg/pc.] |
| BWW 7/8 | 2.50 | 131 | 80 | 50 | 15 | 28 | 55 | 1,20 |
| BWW 10 | 4.00 | 170 | 100 | 70 | 20 | 36 | 65 | 2,89 |
| BWW 13 | 6.70 | 209 | 130 | 80 | 25 | 40 | 90 | 5,23 |
| BWW 16 | 10.00 | 263 | 160 | 100 | 30 | 50 | 110 | 9,79 |
| BWW 19/20 | 16.00 | 306 | 185 | 120 | 40 | 60 | 130 | 18,39 |
| BWW 22 | 19.00 | 368 | 220 | 140 | 50 | 75 | 150 | 31,65 |
