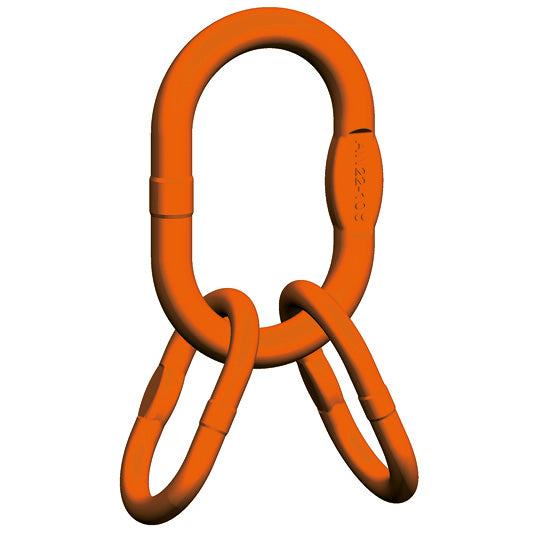

Pewag Winner Grade 10 Special Enlarged Quad Master Link (VAW) EN1677-4
Pewag Winner G10 Special Enlarged Quad Master Link Assembly to EN 1677-4 with mechanical values for Grade 10.
- For three and four leg chain slings and wire rope slings
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Consisting of | Load capacity 0°-45° [tonnes] | Used up to single hook | t [mm] | w [mm] | e [mm] | Weight [kg/pc] |
| VAW6/7 | AW18 + 2 AW14 | 5.00 | Nr. 5 | 135 | 75 | 245 | 1,72 |
| VAW8 | AW22 + 2 AW16 | 6.30 | Nr. 6 | 160 | 90 | 270 | 2,66 |
| VAW10 | AW26 + 2 AW18 | 9.50 | Nr. 8 | 180 | 100 | 315 | 4,30 |
| VAW13 | AW32 + 2 AW26 | 16.10 | Nr. 10 | 200 | 110 | 380 | 9,06 |
| VAW16 | AW36 + 2 AW32 | 25.10 | Nr. 16 | 260 | 140 | 460 | 14,50 |
| VAW19/20 | AW50 + 2 MW36 | 41.10 | Nr. 32 | 350 | 190 | 625 | 31,51 |
| VAW22 | AW50 + 2 AW45 | 47.40 | Nr. 32 | 350 | 190 | 690 | 42,19 |
| VAW26 | AW56 + 2 AW50 | 58.00 | Nr. 32 | 400 | 200 | 750 | 56,40 |
| VAW32 | AW72 + 2 AW56 | 85.00 | Nr. 50 | 460 | 250 | 860 | 99,02 |
