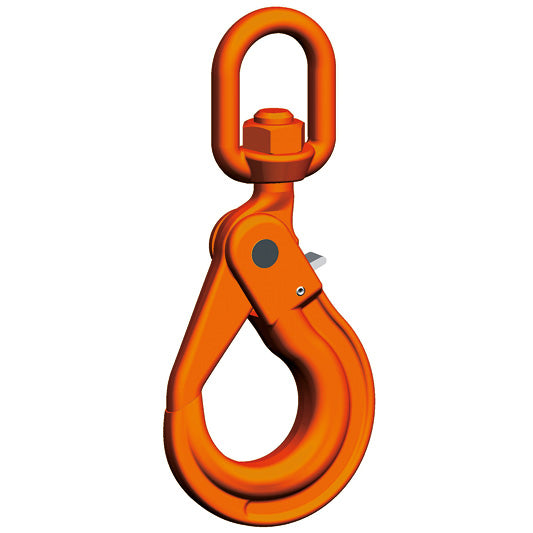

Pewag Winner Grade 10 Eye Swivel Safety Hook With Ball Bearing (WLHBW) EN1677-3
Pewag Winner G10 Eye Type Swivel Safety Locking Hook With Ball Bearing to EN 1677-3 With Mechanical Values For Grade 10.
- Fitted with ball bearing - will rotate under load!
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 120°C.
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | w [mm] | w1 [mm] | d2 [mm] | g [mm] | s max [mm] | Weight [kg/pc.] |
| WLHBW5/6 | 1.40 | 160 | 20 | 17 | 35 | 35 | 13 | 28 | 1 | 0,78 |
| WLHBW7/8 | 2.50 | 181 | 26 | 20 | 35 | 35 | 13 | 34 | 1 | 1,10 |
| WLHBW10 | 4.00 | 218 | 30 | 29 | 42 | 40 | 16 | 45 | 1 | 2,00 |
| WLHBW13 | 6.70 | 269 | 40 | 35 | 49 | 47 | 20 | 52 | 2 | 4,00 |
| WLHBW16 | 10.00 | 319 | 50 | 41 | 60 | 60 | 24 | 60 | 2 | 6,80 |
