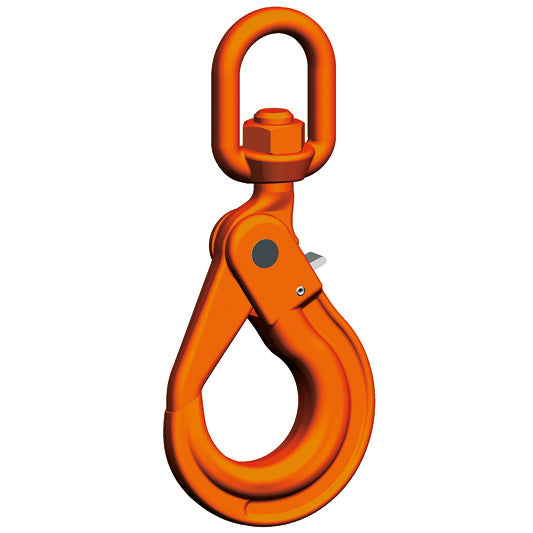

Pewag Winner Grade 10 Eye Swivel Safety Hook (WLHW) EN1677-3

Pewag Winner G10 Eye Type Swivel Safety Locking Hook to EN 1677-3 With Mechanical Values For Grade 10.
- Fitted with bush - will not rotate under load!
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
Code | |
---|---|
WLHW5/6 | |
Load capacity [tonnes] | 1.40 |
e [mm] | 160 |
h [mm] | 20 |
a [mm] | 17 |
w [mm] | 35 |
w1 [mm] | 35 |
d2 [mm[ | 13 |
g [mm] | 28 |
s max [mm] | 1 |
Weight [kg/pc.] | 0,78 |
WLHW7/8 | |
Load capacity [tonnes] | 2.50 |
e [mm] | 181 |
h [mm] | 26 |
a [mm] | 20 |
w [mm] | 35 |
w1 [mm] | 35 |
d2 [mm[ | 13 |
g [mm] | 34 |
s max [mm] | 1 |
Weight [kg/pc.] | 1,10 |
WLHW10 | |
Load capacity [tonnes] | 4.00 |
e [mm] | 218 |
h [mm] | 30 |
a [mm] | 29 |
w [mm] | 42 |
w1 [mm] | 40 |
d2 [mm[ | 16 |
g [mm] | 45 |
s max [mm] | 1 |
Weight [kg/pc.] | 2,00 |
WLHW13 | |
Load capacity [tonnes] | 6.70 |
e [mm] | 269 |
h [mm] | 40 |
a [mm] | 35 |
w [mm] | 49 |
w1 [mm] | 47 |
d2 [mm[ | 20 |
g [mm] | 52 |
s max [mm] | 2 |
Weight [kg/pc.] | 4,00 |
WLHW16 | |
Load capacity [tonnes] | 10.00 |
e [mm] | 319 |
h [mm] | 50 |
a [mm] | 41 |
w [mm] | 60 |
w1 [mm] | 60 |
d2 [mm[ | 24 |
g [mm] | 60 |
s max [mm] | 2 |
Weight [kg/pc.] | 6,80 |
Code | Load capacity [tonnes] | e [mm] | h [mm] | a [mm] | w [mm] | w1 [mm] | d2 [mm[ | g [mm] | s max [mm] | Weight [kg/pc.] |
WLHW5/6 | 1.40 | 160 | 20 | 17 | 35 | 35 | 13 | 28 | 1 | 0,78 |
WLHW7/8 | 2.50 | 181 | 26 | 20 | 35 | 35 | 13 | 34 | 1 | 1,10 |
WLHW10 | 4.00 | 218 | 30 | 29 | 42 | 40 | 16 | 45 | 1 | 2,00 |
WLHW13 | 6.70 | 269 | 40 | 35 | 49 | 47 | 20 | 52 | 2 | 4,00 |
WLHW16 | 10.00 | 319 | 50 | 41 | 60 | 60 | 24 | 60 | 2 | 6,80 |
