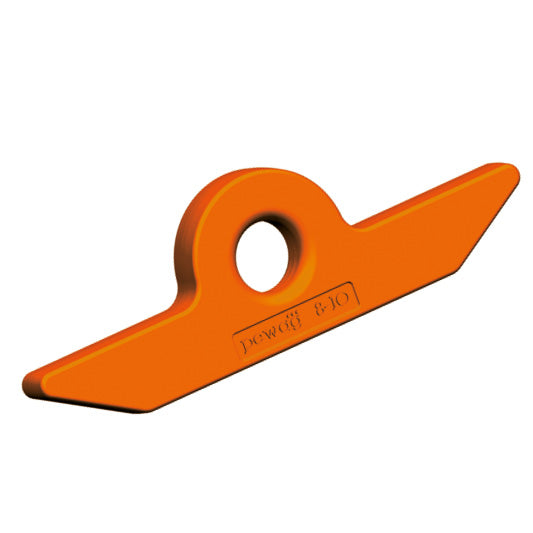

Pewag Winner Grade 10 Toggle (KNEW) EN1677-1
Pewag Winner G10 Toggle to EN 1677-1 With Mechanical Values For Grade 10.
- Used for the movement of sheet steel
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | For chain | Load capacity [tonnes] | e [mm] | a [mm] | b [mm] | c [mm] | d1 [mm] | d min [mm] | d max [mm] | Connecting link |
| KNEW8 | 8 | 2.50 | 10 | 17 | 120 | 38 | 15 | 40 | 60 | WIN10 |
