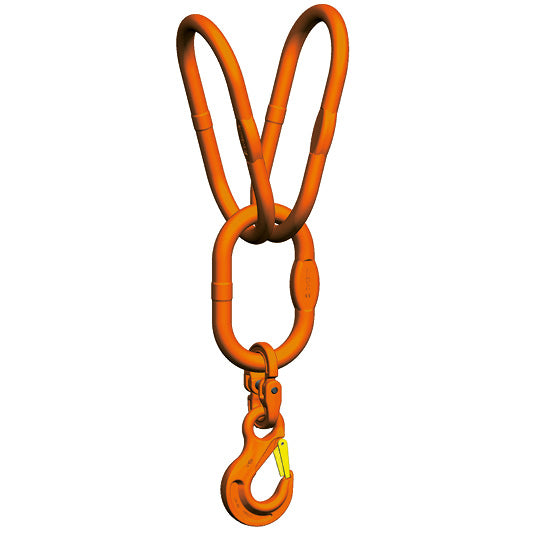

Pewag Winner G10 Transition Assembly For Double Hook (UW) EN818-4
Pewag Winner G10 Transition Assembly to EN818-4 With Mechanical Values For Grade 10.
- For double ramshorn hooks to DIN15402
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
| Code | For double hook DIN15402 | Load capacity [tonnes] | Comprising of | Weight [kg/pc] |
| UW 50/4 II VSAW-HSW Connex | - Nr. 50 | 4.00 | 2xVSAW1-16 / AW36 / CW16 / HSW10 | 27.40 |
| UW 50/6.7 II VSAW-HSW Connex | - Nr. 50 | 6.70 | 2xVSAW1-16 / AW36 / CW16 / HSW13 | 28.50 |
| UW 50/10 II VSAW-HSW Connex | - Nr. 50 | 10.00 | 2xVSAW1-16 / AW36 / CW16 / HSW16 | 29.80 |
| UW 50/16 II VSAW-HSW Connex | - Nr. 50 | 16.00 | 2xVSAW1-16 / AW36 / CW19/20 / HSW19/20 | 33.10 |
| UW 50/19 II VSAW-HSW Connex | - Nr. 50 | 19.00 | 2xVSAW1-22 / AW50 / CW26 / HSW22 | 66.90 |
| UW 50/26.5 II VSAW-HSW Connex | - Nr. 50 | 26.50 | 2xVSAW1-22 / AW50 / CW26 / HSW26 | 72.30 |
| UW 50/40 II VSAW-HSW Connex | - Nr. 50 | 40.00 | 2xVSAW1-22 / AW50 / CW32 / HSW32 | 97.30 |
| UW 100/26.5 II VSAW-HSW Connex | - Nr. 100 | 26.50 | 2xVSAW1-32/320 / AW50 / CW26 / HSW26 | 132.70 |
| UW 100/40 II VSAW-HSW Connex | - Nr. 100 | 40.00 | 2xVSAW1-32/320 / AW50 / CW32 / HSW32 | 151.30 |
