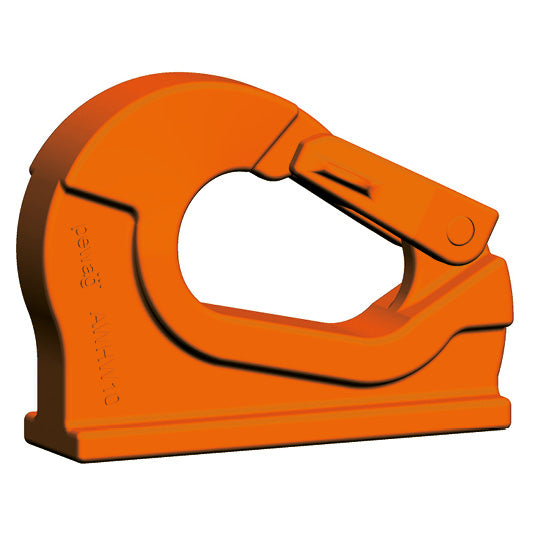

Pewag Winner Grade 10 Weld On Hook (AWHW) EN1677-1
Pewag Winner G10 Weld On Hook to EN 1677-1 With Mechanical Values For Grade 10.
- For welding on to excavator buckets, lifting beams etc.
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | Load capacity [tonnes] | L [mm] | H [mm] | G [mm] | B [mm] | C [mm] | Weight [kg/pc.] |
| AWHW1.3 | 1.30 | 95 | 71 | 25 | 25 | 34 | 0,60 |
| AWHW3.8 | 3.80 | 132 | 105 | 29 | 35 | 40 | 1,30 |
| AWHW6.3 | 6.30 | 167 | 130 | 34 | 45 | 49 | 2,80 |
| AWHW10 | 10.00 | 175 | 133 | 34 | 50 | 49 | 3,70 |
