LINX-8 Grade 8 Eye Sling Hook (BSH) EN1677-1

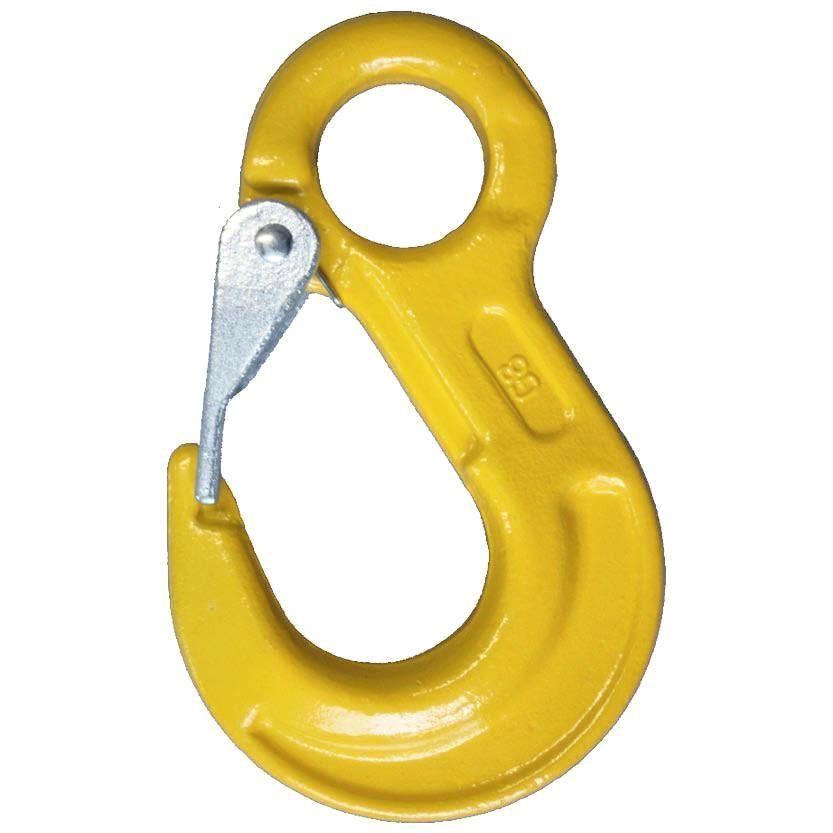

LINX-8 G8 Eye Sling Hook With Safety Latch to EN 1677-1.
- Terminal fitting for Grade 8 chain sling and wire rope assemblies
- Manufactured from alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
| Code | WLL (t) | e [mm] | h [mm] | a [mm] | d1 [mm] | d2 [mm] | g [mm] | b [mm] | Weight [kg/pc.] |
| BSH6 | 1.12 | 78 | 20 | 15 | 20.5 | 9 | 18.5 | 68 | 0.26 |
| BSH7-8 | 2.00 | 95 | 27 | 18 | 25 | 11 | 22 | 84 | 0.48 |
| BSH10 | 3.15 | 118 | 33 | 24 | 34 | 14 | 28 | 102.5 | 0.84 |
| BSH13 | 5.30 | 149 | 40 | 32 | 42.5 | 17.5 | 35 | 128.5 | 1.84 |
| BSH16 | 8.00 | 183 | 48 | 38 | 52 | 22 | 43 | 156.5 | 3.06 |
