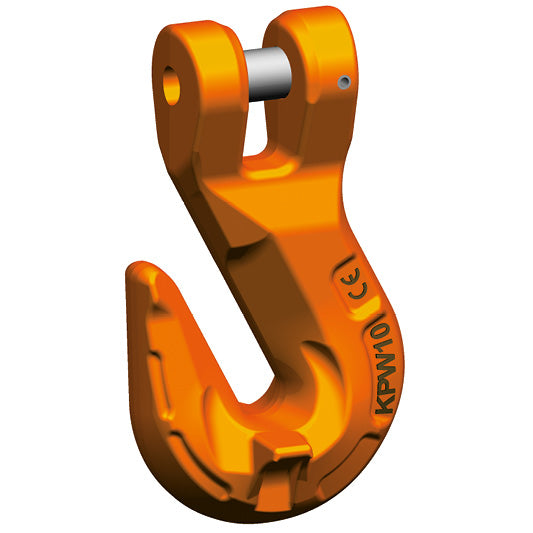

Pewag Winner Grade 10 Clevis Grab Hook (KPW) EN1677-1

Pewag Winner G10 Clevis grab Hook to EN 1677-1 With Mechanical Values For Grade 10.
- For the shortening of chain slings and loops that must not tighten
- Manufactured from special alloy steel
- Proof load tested to 2.5 x WLL
- Fatigue tested to 1.5 x WLL for 20,000 cycles
- 100% Magnaflux crack detected
- Powder coated
Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL).
Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.
Code | |
---|---|
KPW 6 | |
Load capacity [tonnes] | 1.40 |
e [mm] | 47 |
b [mm] | 47 |
d [mm] | 7.4 |
g [mm] | 7 |
Weight [kg/pc.] | 0,17 |
KPW 7 | |
Load capacity [tonnes] | 1.90 |
e [mm] | 63 |
b [mm] | 57 |
d [mm] | 9 |
g [mm] | 9 |
Weight [kg/pc.] | 0,44 |
KPW 8 | |
Load capacity [tonnes] | 2.50 |
e [mm] | 63 |
b [mm] | 57 |
d [mm] | 10 |
g [mm] | 9 |
Weight [kg/pc.] | 0,44 |
KPW 10 | |
Load capacity [tonnes] | 4.00 |
e [mm] | 78 |
b [mm] | 71 |
d [mm] | 12.5 |
g [mm] | 12 |
Weight [kg/pc.] | 0,85 |
KPW 13 | |
Load capacity [tonnes] | 6.70 |
e [mm] | 93 |
b [mm] | 92 |
d [mm] | 16 |
g [mm] | 15 |
Weight [kg/pc.] | 1,75 |
KPW 16 | |
Load capacity [tonnes] | 10.00 |
e [mm] | 115 |
b [mm] | 113 |
d [mm] | 20 |
g [mm] | 19 |
Weight [kg/pc.] | 3,30 |
KPW 19/20 | |
Load capacity [tonnes] | 16.00 |
e [mm] | 141 |
b [mm] | 150 |
d [mm] | 24 |
g [mm] | 25 |
Weight [kg/pc.] | 6,15 |
KPW 22 | |
Load capacity [tonnes] | 19.00 |
e [mm] | 158 |
b [mm] | 165 |
d [mm] | 27 |
g [mm] | 27 |
Weight [kg/pc.] | 9,00 |
Code | Load capacity [tonnes] | e [mm] | b [mm] | d [mm] | g [mm] | Weight [kg/pc.] |
KPW 6 | 1.40 | 47 | 47 | 7.4 | 7 | 0,17 |
KPW 7 | 1.90 | 63 | 57 | 9 | 9 | 0,44 |
KPW 8 | 2.50 | 63 | 57 | 10 | 9 | 0,44 |
KPW 10 | 4.00 | 78 | 71 | 12.5 | 12 | 0,85 |
KPW 13 | 6.70 | 93 | 92 | 16 | 15 | 1,75 |
KPW 16 | 10.00 | 115 | 113 | 20 | 19 | 3,30 |
KPW 19/20 | 16.00 | 141 | 150 | 24 | 25 | 6,15 |
KPW 22 | 19.00 | 158 | 165 | 27 | 27 | 9,00 |
