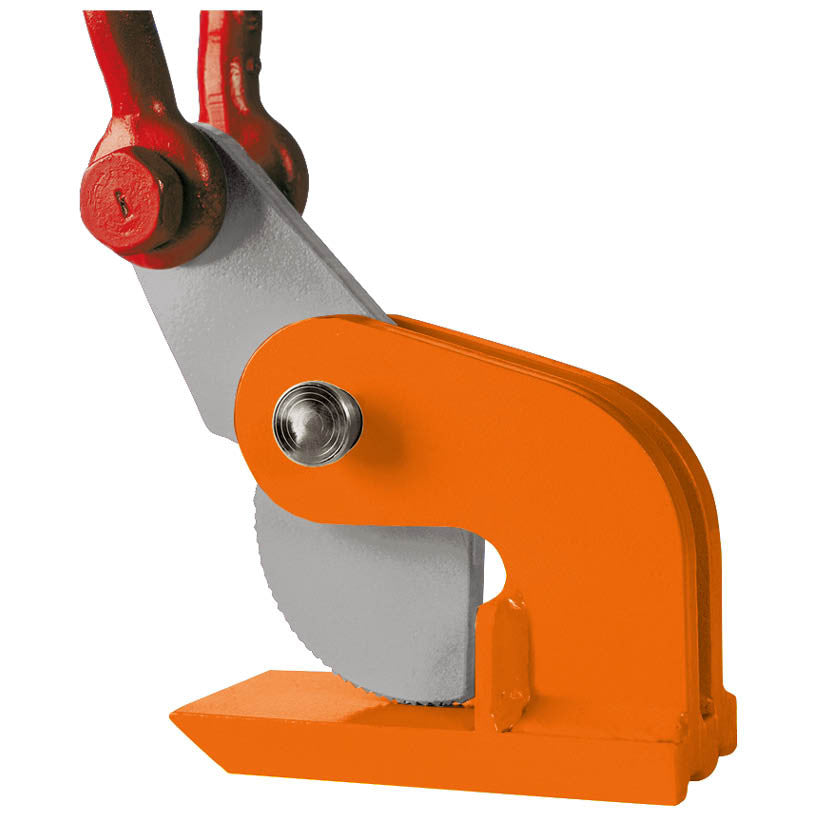

Pewag DHW Horizontal Lifting Clamp
Price on Request
For lifting and horizontal moving of thin sheets that deflect when being lifted. Compact shape and relatively low unit weights with a high lifting capacity.
Horizontal lifting clamps DHW must always be used in pairs (or multiples thereof). Max. apex angle: 60°.
| Code | |
|---|---|
| DHW 1 t | |
| Load capacity [kg/pair] | 1000 |
| Jaw opening R [mm] | 0-15 |
| V [mm] | 140 |
| S [mm] | 99 |
| W [mm] | 10 |
| T [mm] | 22,50 |
| H [mm] | 13,50 |
| X [mm] | 65 |
| U [mm] | 167 |
| Y [mm] | 15 |
| Weight [kg/pc.] | 2,50 |
| DHW 2 t | |
| Load capacity [kg/pair] | 2000 |
| Jaw opening R [mm] | 0-35 |
| V [mm] | 180 |
| S [mm] | 114 |
| W [mm] | 20 |
| T [mm] | 26 |
| H [mm] | 14 |
| X [mm] | 80 |
| U [mm] | 233 |
| Y [mm] | 15 |
| Weight [kg/pc.] | 8 |
| DHW 4 t | |
| Load capacity [kg/pair] | 4000 |
| Jaw opening R [mm] | 0-50 |
| V [mm] | 235 |
| S [mm] | 129 |
| W [mm] | 30 |
| T [mm] | 40 |
| H [mm] | 25 |
| X [mm] | 130 |
| U [mm] | 304 |
| Y [mm] | 20 |
| Weight [kg/pc.] | 18 |
| DHW 6 t | |
| Load capacity [kg/pair] | 6000 |
| Jaw opening R [mm] | 0-50 |
| V [mm] | 235 |
| S [mm] | 129 |
| W [mm] | 30 |
| T [mm] | 40 |
| H [mm] | 25 |
| X [mm] | 130 |
| U [mm] | 304 |
| Y [mm] | 20 |
| Weight [kg/pc.] | 18 |
| Code | Load capacity [kg/pair] | Jaw opening R [mm] | V [mm] | S [mm] | W [mm] | T [mm] | H [mm] | X [mm] | U [mm] | Y [mm] | Weight [kg/pc.] |
| DHW 1 t | 1000 | 0-15 | 140 | 99 | 10 | 22,50 | 13,50 | 65 | 167 | 15 | 2,50 |
| DHW 2 t | 2000 | 0-35 | 180 | 114 | 20 | 26 | 14 | 80 | 233 | 15 | 8 |
| DHW 4 t | 4000 | 0-50 | 235 | 129 | 30 | 40 | 25 | 130 | 304 | 20 | 18 |
| DHW 6 t | 6000 | 0-50 | 235 | 129 | 30 | 40 | 25 | 130 | 304 | 20 | 18 |
