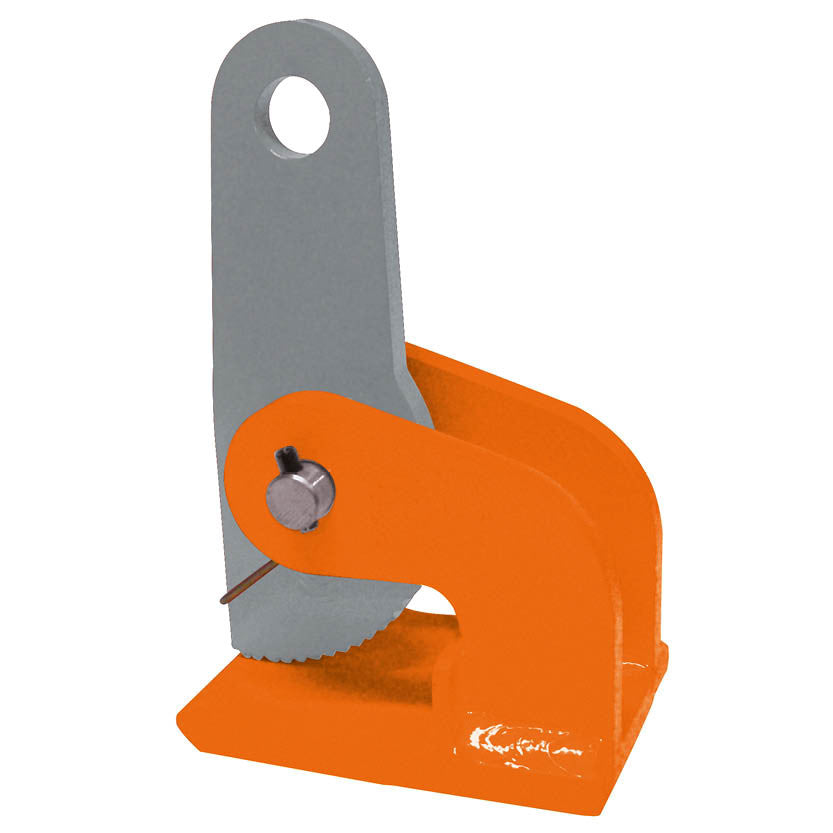

Pewag HXW-V Horizontal Lifting Clamp
Price on Request
The HXW-V horizontal lifting clamps has a spring attached to the cam assembly allowing the clamp to close on any desired spot.
The spring allows one operator to place the clamps and guide the hoist. HXW-V horizontal lifting clamps must always be used in pairs (or multiples thereof). Lifting clamps HXW-V are available with a capacity from 1.000 kg per pair to 6.000 kg per pair.
| Code | Load capacity [kg/pair] | Jaw opening R [mm] | V [mm] | S [mm] | W [mm] | T [mm] | H [mm] | U [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| HXW-V1T | 1000 | 0-35 | 140 | 99 | 10 | 26,50 | 12 | 188 | 85 | 15 | 3 |
| HXW-V2T | 2000 | 0-60 | 180 | 114 | 15 | 30,50 | 19 | 286 | 125 | 16 | 8 |
| HXW-V3T | 3000 | 0-60 | 200 | 125 | 20 | 30,50 | 19 | 302 | 140 | 20 | 12,20 |
| HXW-V4T | 4000 | 0-60 | 220 | 139 | 30 | 30,50 | 19 | 316 | 165 | 20 | 17 |
| HXW-V6T | 6000 | 0-60 | 220 | 139 | 30 | 30,50 | 19 | 316 | 165 | 20 | 17 |
