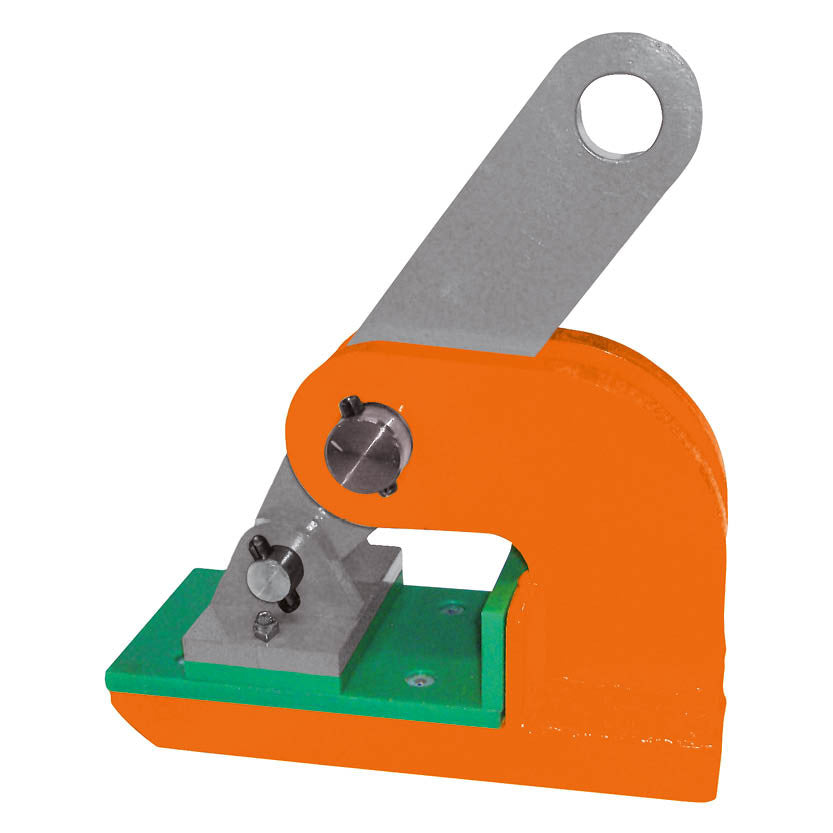

Pewag NMHW Horizontal Lifting Clamp
Price on Request
The NMHW lifting clamp is suited for moving and lifting objects with fragile surfaces, like stainless steel, wood panels, aluminium etc. The jaw and cam is covered with a high quality, pressure resistant protective cover. NMHW horizontal lifting clamps must always be used in pairs (or multiples thereof).
NMHW lifting clamps are available with a capacity from 1000 kg per pair to 6000 kg per pair.
| Code | Load capacity [kg/pair] | Jaw opening R [mm] | V [mm] | S [mm] | W [mm] | T [mm] | H [mm] | U [mm] | X [mm] | Y [mm] | Weight [kg/pc.] |
| NMHW1T | 1000 | 0-25 | 140 | 94 | 15 | 20 | 10 | 155 | 65 | 15 | 2,40 |
| NMHW2T | 2000 | 0-45 | 225 | 151 | 23 | 30,50 | 15 | 267 | 90 | 15 | 7,5 |
| NMHW3T | 3000 | 0-45 | 225 | 151 | 20 | 30,50 | 15 | 271 | 90 | 15 | 8,30 |
| NMHW4T | 4000 | 0-50 | 250 | 161 | 20 | 30,50 | 17,50 | 300 | 115 | 30 | 13 |
| NMHW6T | 6000 | 0-50 | 250 | 161 | 25 | 30,50 | 17,50 | 306 | 130 | 30 | 18 |
